JazzBass用アッセンブリ TYPE- Orange Drop


  • Product Quantity
    : 1
  • Starting Bid
    :7,380円
  • Highest Bidder
    : ひでまる / Rating:6
  • Listing Date
    :2025年08月28日 11時24分
  • Bidding closes on
    :2025年09月01日 19時55分
  • Auction Number
    :1190286181
  • Condition
    :New product
  • Automatic Extension
    :No
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur

JazzBass用アッセンブリ TYPE- Orange Drop




商品詳細

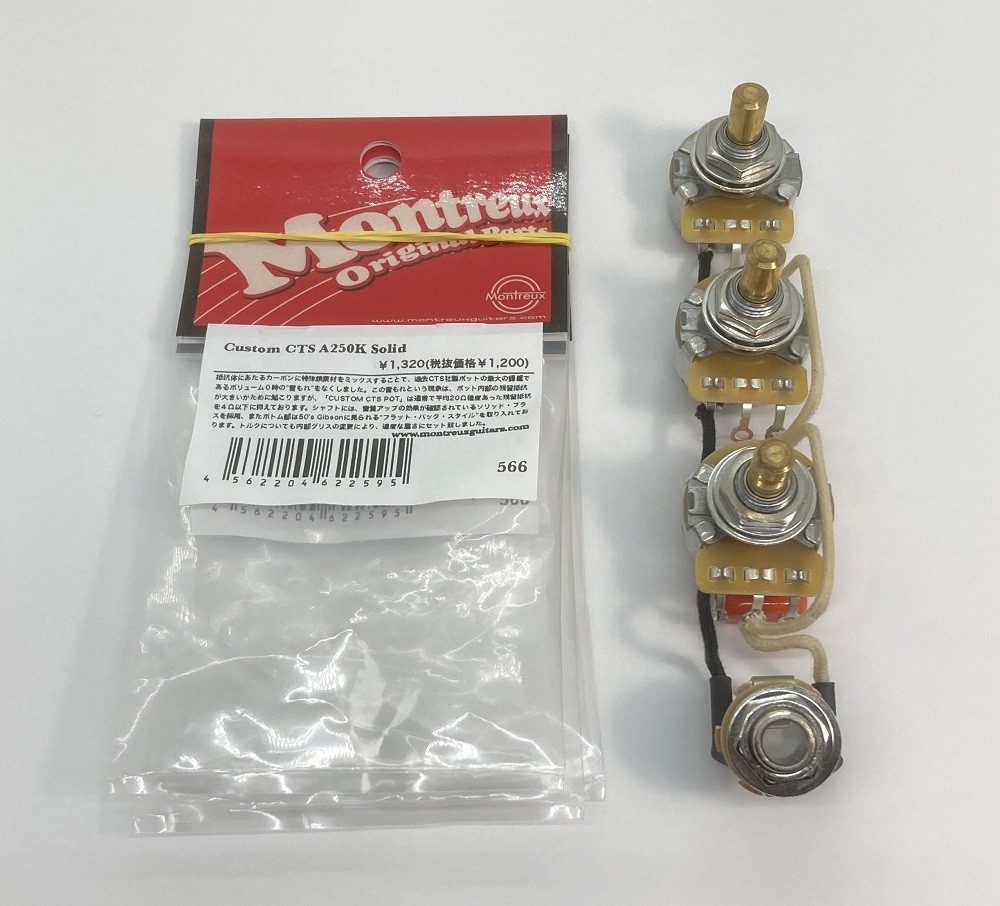

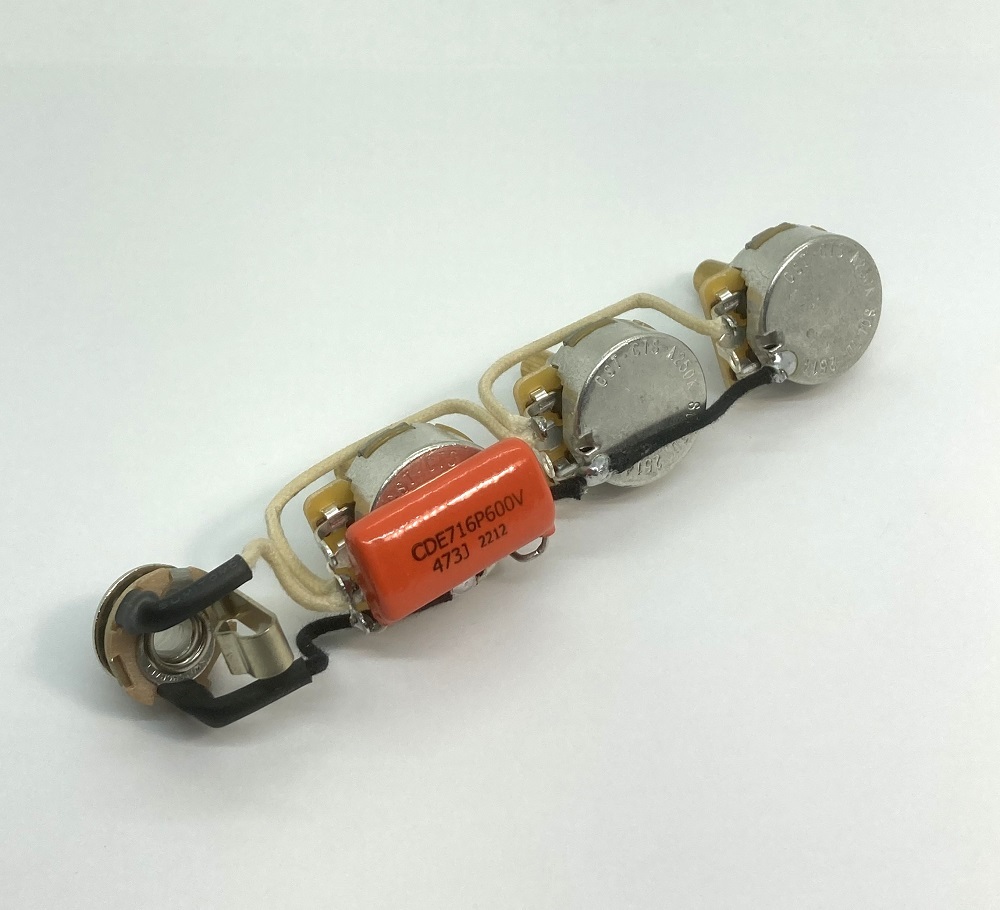

* 一般的な3ノブJazzBassの配線済みキット。
CTS製のカスタムポットや、コンデンサーにはCDE 716P Orange Dropを使用してます。

コントロール:フロントボリューム×1
       ブリッジボリューム×1
       マスタートーン×1

<各パーツの仕様>
*ボリューム&トーンポット:Montreux Custom CTS A250KΩ ソリッドシャフト
抵抗体にあたるカーボンに特殊銀素材をミックスすることで、過去CTS社製ポットの最大の課題である
ボリューム0時の“音もれ”をなくしました。この音もれという現象は、ポット内部の残留抵抗が大きいがために起こりますが、「CUSTOM CTS POT」は通常で平均20Ω程度あった残留抵抗を4Ω以下に抑えております。
シャフトには、音質アップの効果が確認されているソリッド・ブラスを採用トルクについても内部グリスの変更により、適度な重さにセット致しました。

*コンデンサー:CDE 716P Orange Drop Capacitor 0.047uF 600VDC
716Pは715P Orange Dropの上位モデルになります。

*アウトプットジャック:Switchcraft mono jack #11

*配線材:Vintage Style Cloth Wire、22AWG、撚り線(ハンダめっきあり)

*使用ハンダ:Kester#44ハンダ

<取り付け方法>
アッセンブリをコントロールプレートへ取り付けてください。
ポットノブの高さ調整ができるように六角インチナットを2個、内歯ワッシャ-&メタルワッシャ-を各1個ポットに取り付けてます。

ピックアップからのホット配線を各ボリュームポットの2番端子へハンダ付けします。

ピックアップからのコールド配線2本をポットの背面等にハンダ付けします。

ブリッジからのアース線をポットの背面等にハンダ付けします。

*ポットの取り付け穴計は、約9.6φ(mm)必要になります。

※掲載画像1枚目のコントロールプレートは付属致しません。

*ボリュームノブ&トーンノブ&は付属しません。インチサイズのネジ固定タイプをご使用ください。

*今回使用したポットのパッケージを同封いたします。

*取り付け配線図付属

注意事項

※アッセンブリ取り付け時のミスにより生じた楽器&パーツの破損や損傷等につきましては当方は保証致しません。あらかじめご了承お願い致します。
発送詳細

*おてがる配送(日本郵便)ゆうパケット(郵便受けへの投函になります。)
