YAMAHA【B2-x】メインアンプ★一世紀の稼働を見据えたメンテナンス調整品★完動品★3K★S/N03953


  • Product Quantity
    : 1
  • Starting Bid
    :1,000円
  • Highest Bidder
    : おに / Rating:271
  • Listing Date
    :2025年08月23日 22時57分
  • Bidding closes on
    :2025年08月25日 21時13分
  • Auction Number
    :c1197414331
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. The remittance needs to be completed within the time required by the seller
♪♪ ご覧頂きありがとうございます ♪♪

YAMAHA(ヤマハ) Natural Sound Stereo Power Amplifier
B2-X の整備済完動品

当時発売価格 ¥270,000 (1987年)

ーーーーーーーーーーーーーーーーーーーはじめにーーーーーーーーーーーーーーーーーーーーーーーー

近頃、新規の方、評価の悪い方による落札後の取引不成立が多く非常に迷惑しております。

新規の方は、ご入札される前に必ず質問欄からご連絡をお願いします。

ご連絡いただけない場合は、入札を取り消しいたします。

評価の悪い方の入札も取り消しいたします。

また、当方の判断で入札を削除しブラックリストへ登録致します。

ご了承ください。

絶対条件として、オークション終了後24時間以内にご連絡

48時間以内にお支払い可能な方のみご参加ください。





The
The

* * * この案内は、たくさんの大きな画像で商品をアピールできるオークション支援システム いめーじあっぷを使用しました。(無料) * * *



 当オークションには、これまでに培ったアンプ・チューナーのメンテナンス経験で得たノウハウで徹底的なメンテナンスを行っています。
主にA-2000シリーズをメンテナンスしており既に80台超を出品しております。
 今回の出品は、A-2000シリーズと基本構成が同じであるB2-Xを出品いたしました。

 この度出品したB2-xは、通電確認未確認の品を入手しメンテナンス作業を開始しましたが見事に外れくじを引き当てたようで通電も出来ませんでした。
 開腹してみるとB2-xのセールスポイントでもある100,000Fのどでかいコンデンサーが見事に破裂しておりました。
 破裂したコンデンサーの取替部品の持ち合わせもなく代替えコンデンサーを調達しても調達費用の回収は出来ないことは見え見えですので、A-2000シリーズで搭載されている33,000Fを代替えとしてメンテナンスしたものです。

 いつも通りの基本メンテナンスと下記のメンテナンスで動作良好となっております。
動作確認と調整は、オーディオアナライザ等の測定器を用いて行い、連続試聴(現在進行中)で快音を奏でています。

 どでかいコンデンサーを33,000Fに変更したことによる音質の変化については、もう直ぐ棺桶に入ることになる私にはモスキート音も聞こえませんので判断出来かねますので落札いただいた方の評価をお待ちいたします。

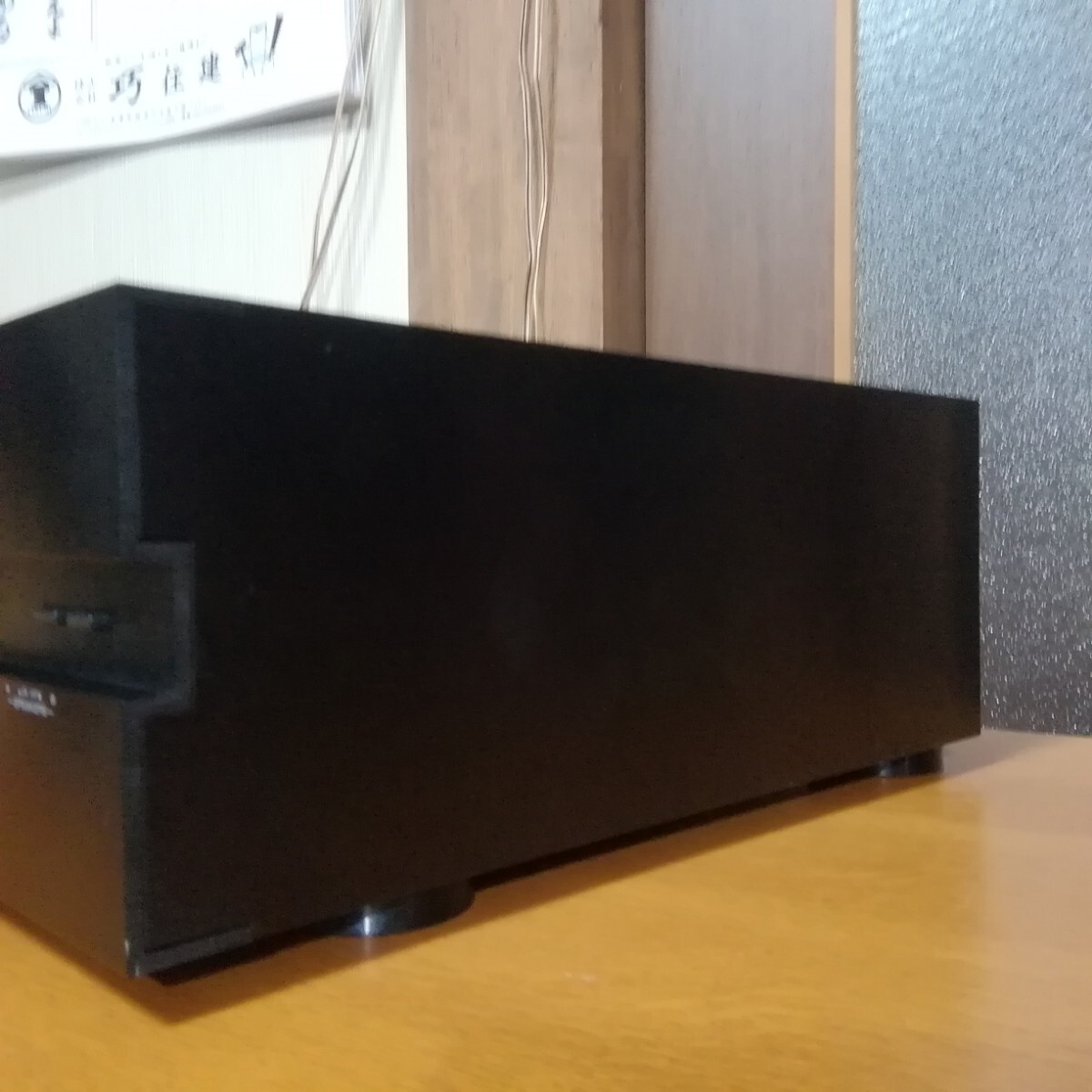

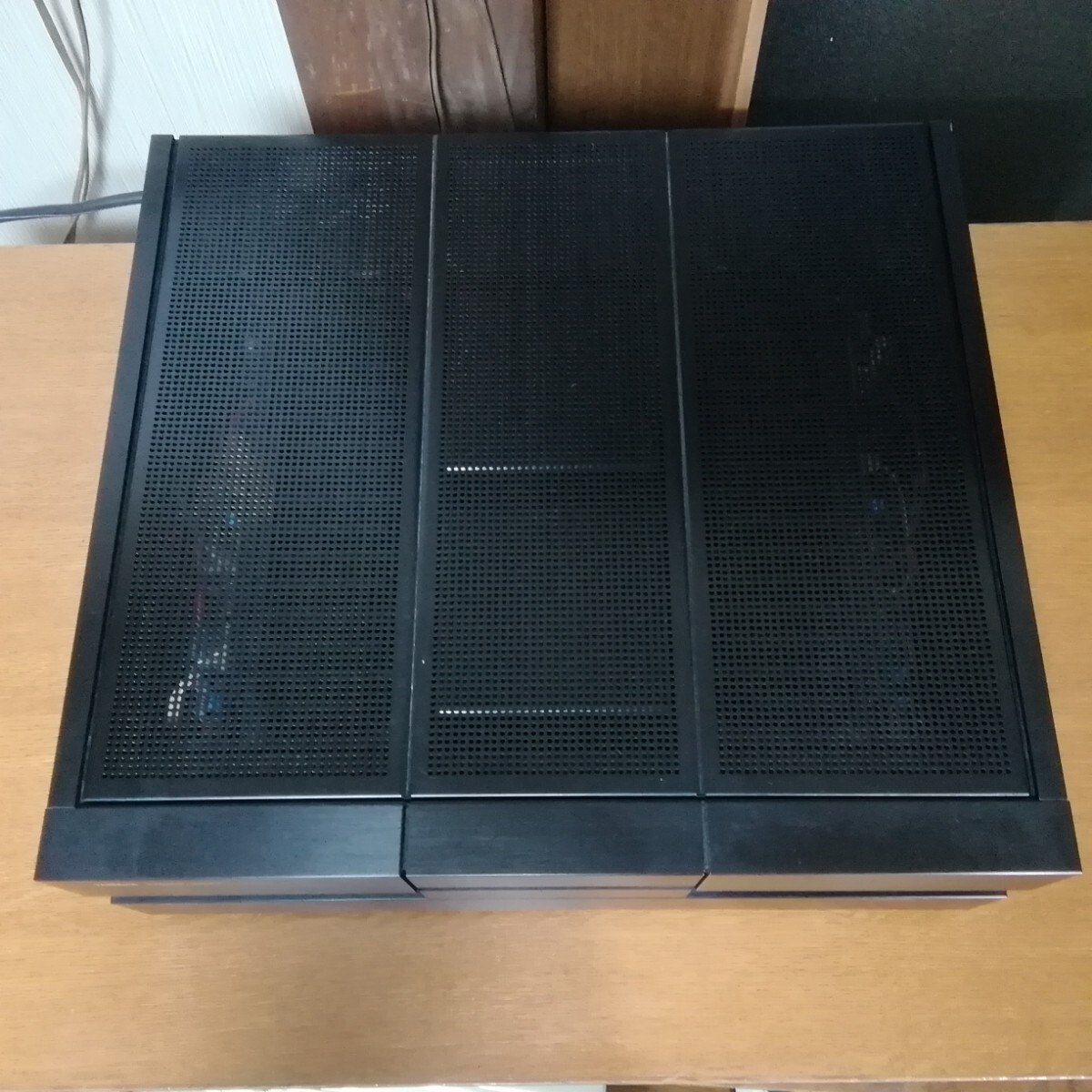

筐体のコンディション

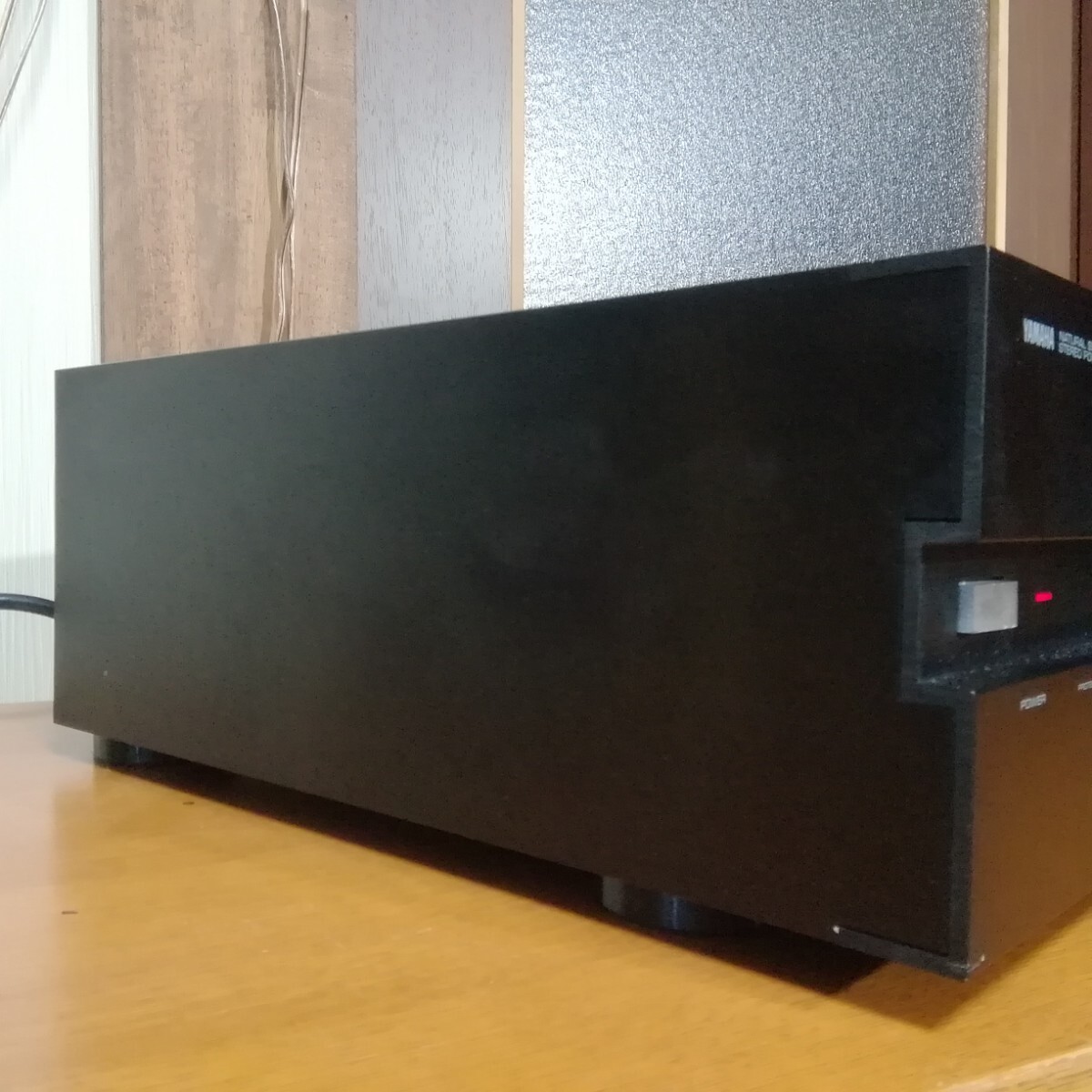

フロントパネル前面は、目立つ傷もなく良好な状態です。
電源スイッチの飾りボタンは欠品でしたのでアルミの削り出しで作製しました。

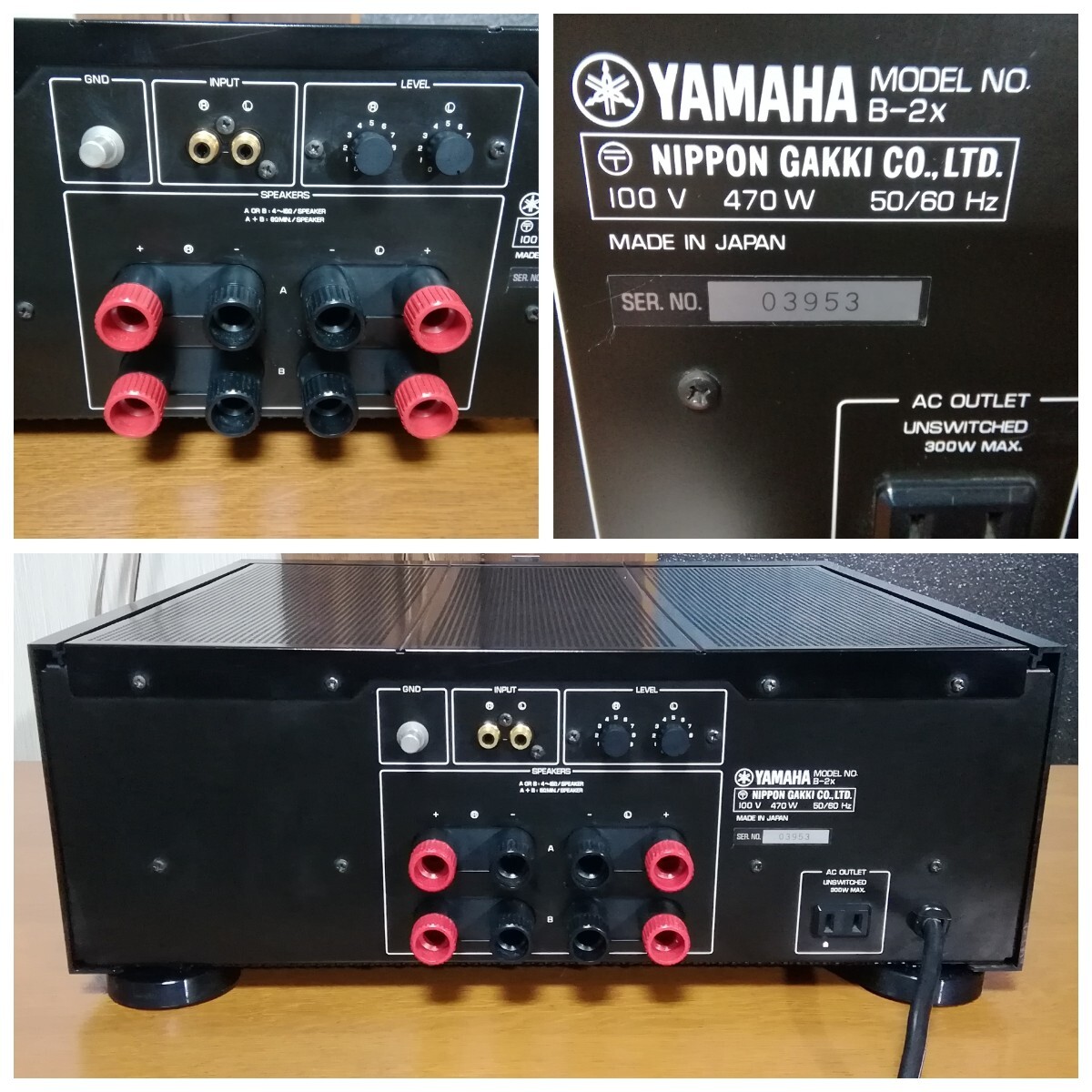

バックパネルは、目立つ傷もなく良好な状態です。
KURE LOOKX(表面仕上げ剤)のワックス塗布しており、良好な状態です。

喫煙環境下での使用の有無−−−−−−−−−無

 全体的に良好な状態の逸品ですので、写真にてご確認の上ご検討頂ければ幸いです。


ーーーーーーーーーーーーーーーーーーー ◆修理箇所◆ーーーーーーーーーーーーーーーーーーーーーー


◯主な修理項目
 パワーアンプ基板の不良トランジスター交換

ーーーーーーーーーーーーーーーーーーー ◆基本メンテナンス◆ーーーーーーーーーーーーーーーーー

○筐体のクリーニング
  • 筐体内部は気吹きで塵埃の除去
  • フロントパネルは洗剤洗浄の上ワックスコーティング
  • バックパネルはクリーニングシートで拭き掃除
  • 取り外し出来る基板は洗剤洗浄
○ボリューム類の接点クリーニング
 ボリューム類の接点クリーニングは、薬剤洗浄→超音波洗浄→乾燥→接点復活剤塗布の工程で行います。
この超音波洗浄は、私にとっては必須工程でありこの工程を取り入れてからはメンテナンス後のガリは殆ど発生していません。
出来ることなら取り外し分解などせずに、サクッと接点復活剤を吹き掛けただけで済ませたいのですが、半年もするとまたガリが発生するのは経験上分かりきっていますのでこの超音波洗浄はガリ除去の必須工程で今後末長くご使用頂けると思います。

○RCA入力端子のクリーニング
 RCA端子のクリーニングは、薬剤洗浄→研磨→接点復活剤塗布の工程で行っております。

○プロテクトリレーの接点クリーニング
 基板より取り外し、分解し接点研磨

○スピーカー端子のベース部補強(エポキシ樹脂充填)


○DCオフセット調整、アイドリング調整
 サービスマニュアルで指定されている調整値で調整しています。
  • アイドリング A級200mV ±10mV
  • アイドリング B級15mV ±3mV

ーーーーーーーーーーーーーー◆さらなる低歪率と安定動作に向けて◆ーーーーーーーーーーーーーーー

○終段パワートランジスター(A級、B級用)の特性チェックとペアリング
  •  基板より取り外し、コレクタ電流(Ic=200mA)時の直流電流増幅率(Hfe)チェック
  •  手持ち在庫品(新品、中古品)で近似値のHfeで再ペアリングし搭載

◯放熱対策(本機は放熱対策のみ)
 再取り付け時には古いシリコーングリスを除去した上で再塗布し放熱対策しています。

○差動増幅段及びコンプリメンタリー増幅段に使用されているトランジスターのペアリング
 基板より取り外し、直流電流増幅率(Hfe)特性の揃ったトランジスター(同型式の新品)でペアリング搭載

○基板の再ハンダ
 A-2000シリーズではハンダクラックが発生する部位がほぼ決まっています。このハンダクラックが引き金となり故障に至っております。
B2-Xも同様に、下記部位のソルダーレジストを除去しハンダランドを増大する事でハンダクラックの防止を図りました。
  • B級側ドライブトランジスタ
  • A級側終段のトランジスタ
  • バイアス調整用トランジスタ


ーーーーーーーーーーーーーー◆B2-xの弱点克服メンテナンス◆ーーーーーーーーーーーーーーー

○スイッチの飾りボタンの離脱防止
 POWERスイッチ等の飾りボタンのプレート部が接着剤の経年劣化で離脱し、欠品となっている個体を多数見かけます。取り付いている個体でもフロントパネルの洗浄時に離脱してしまう個体がほとんどです。 そこで、ひと手間を加えプレートの離脱防止を図りました。
  • 飾りボタンの背面側でプレートをビス止めしましたので今後離脱することはありません

ーーーーーーーーーーーーーーーーーーー◆製品仕様◆ーーーーーーーーーーーーーーーーーーー



ーーーーーーーーーーーーーーーーーーー◆付 属 品◆ーーーーーーーーーーーーーーーーーーーー
ございません


ーーーーーーーーーーーーーーーーーーー◆商品の動作保証について◆ーーーーーーーー

保証はありませんが、連絡を頂ければ善処いたします。
