[後期型・1CHIP] Nintendo Super Famicom カスタム スーパーファミコン 本体 (HDMI, USB-C, オーディオアンプ、OS-CON) +ソフト4本 [F167]


  • Product Quantity
    : 1
  • Starting Bid
    :1円
  • Highest Bidder
    : バイイー / Rating:36729
  • Listing Date
    :2025年07月20日 10時32分
  • Bidding closes on
    :2025年07月27日 21時35分
  • Auction Number
    :e1193343701
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Batteries are considered dangerous goods under international shipping regulations and cannot be shipped.


入札前にお読みください. . .

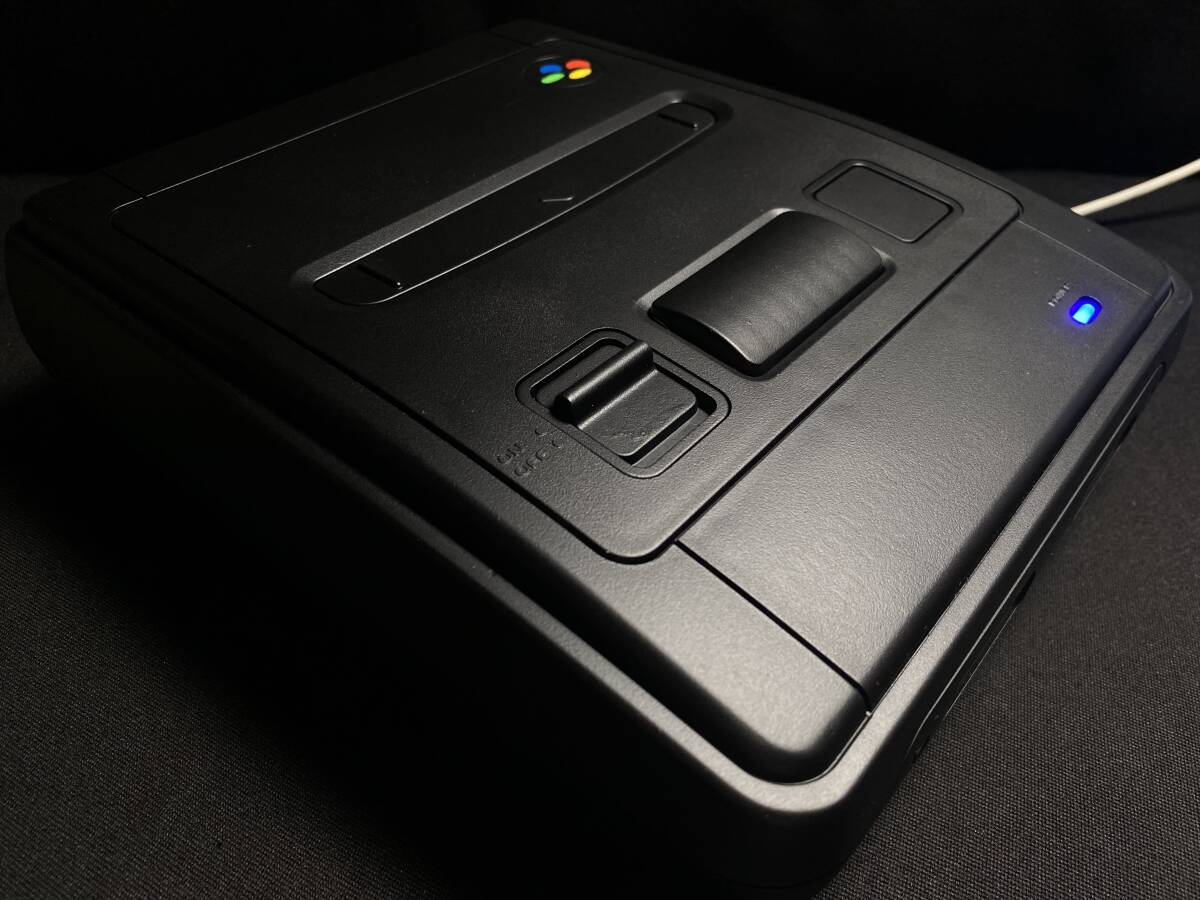

Nintendo Super Famicom
任天堂スーパーファミコン
HDMIカスタム改
(後期型・1CHIP-02)
+動作確認用ソフト4本付き
Item


Nintendo スーパーファミコン
1995 SNS-CPU-1CHIP-02
後期型(カスタム・オーバーホール品)


カスタマイズ内容
①基板は埃や汚れをクリーニング
(専用のアルカリ性溶液で基板上の
酸化被膜を中和して除去)

②接点の古いハンダを除去し、
再ハンダ(ハンダ割れ防止のため)

③HDMI端子を実装

④USB-C電源を実装
(モバイルバッテリーで起動可能)

⑤コントローラーも分解洗浄し
ゴムパッドやケーブルの被膜は
ゴム製パーツ保護剤でメンテナンス

⑥基板上の電解コンデンサは
Panasonic製導電性高分子
アルミ固体電解コンデンサを実装(OS-CON)
更に電源ノイズ対策にOS-CONを追加
音源周りはオーディオ用電解コンデンサ
(ニチコンMUSE10μF 25V)
使用したOS-CONや音響コンデンサは
安定した動作とオーディオ性能向上の
ために採用しております
クリアな音質を楽しめます

⑦ゴースト修正のためチップコンデンサを
47nfから470nfに変更

⑧メイン基板は洗浄後に
絶縁コーティング剤で
防塵・防錆加工

⑨オーディオステレオアンプ実装

⑩ 3.5mmオーディオジャックで
音声出力可能

11本体ケースの樹脂の劣化、
色褪せ、ヒビ割れ防止のため
高分子ポリマー&紫外線吸収剤の
保護被膜でコーティング

12純正ヒューズからリセッタブルヒューズ
(ポリスイッチ)に変更

13マルチAVアウトから
コンポジット接続可能なので
デュアルモニターでプレイ可能

14電源ランプは青色LEDに変更

15コンポジット接続される場合に
HDMIの電源のオンオフを
切り替えるスイッチを実装

16オーディオアンプも使用しない場合は
スイッチで電源を切る事が出来ます
17付属のソフトは
バッテリーを交換する際
簡単に取り外し可能な
電池ホルダーを実装し
バッテリーを新品に交換
更に古い電解コンデンサを除去し
チップ電解コンデンサーを
新たに交換しております
端子も綺麗に磨いてあります
全て一発で起動しました
18初期型の着脱式スロットに変更


The
こちらの写真はイメージですが...
分配器を使用せずに
デュアルモニターで遊べます。
コンポジットでゲームをしながら
PCに接続しOBSなどで
プレイ動画の生配信をしたり
動画を収録したりするのに
非常に便利です
通常プレイの他にHDMIの
活用方法は多岐に渡ります


商品説明

こちらはスーパーファミコンの後期型の
SNS-CPU-1CHIP-02という
希少且つ人気のモデルです
メイン基板等をオーバーホールしました
通常の電解コンデンサーではなく
PanasonicのOS-CONという
コンデンサーを使用しております
ノイズ除去能力に優れた
個体電解コンデンサーです
電解質が固体のため
低温下での特性劣化
を気にせず安定して
使用可能です
画質も非常に安定しております
固体コンデンサーのため液漏れの
心配する事もありません
また1CHIPの特徴として
二重に表示される
ゴースト現象を解消するため
特定のコンデンサーを適切な物に
交換してあります
電源はUSB-Cで給電出来るように改良し
スーファミ本体から
HDMI出力出来るようにカスタマイズ
更にオーディオアンプを搭載し、
オーディオジャックを実装
ヘッドホンでBGMを
聴きながらプレイしたり
スピーカーを接続したり、
音声をより一層楽しむ事が出来ます
スーファミの音質を決めるコンデンサを
NichiconのMUSEという無極性コンデンサに
変更しました
ソフトは全ておまけですが、
紫外線吸収剤でコーティング
全電解コンデンサ交換済み
端子磨き上げ
バッテリーホルダー実装
新品バッテリーに交換し
フルメンテナンス済みです
全て一発で起動を
確認しております
ソフトの電解コンデンサは
22μF/16Vの物を
使用しております。
安心してプレイ出来ると思います。
他にもメンテナンス済みのソフトを
出品しております
同梱も可能です


The
以前X(元Twitter)で
カスタムスーパーファミコンでバズりました。
フリマで販売しておりましたが、
出品すると数分で即購入され完売し
入手が非常に困難になるため、
以前から要望が多かった
カスタムスーパーファミコンを
こちらでも出品する事に致しました。
またHDMI化ファミコンやゲームボーイなども
出品予定です
必要なソフトもリクエストございましたら
こちらにも出品可能なので
コメント欄などからお知らせください
可能であればご用意致します
他に何か要望があれば
質問欄にて受け付けますので、
気兼ねなくご質問ください。
ご入札お待ちしております。


〜当オークションの内容物〜
①本体
②コントローラー
③AVケーブル
④HIGH SPEED HDMIケーブル
⑤USB-Cケーブル
⑥ソフト4本(フルメンテナンス済み)


The


The


The


The


The



info
管理番号 [F167]
支払い方法:簡単決済
発送方法: おてがる配送ゆうパック
