Sansui サンスイ AU-D907F EXTRA (S-A) 『 オーバーホール 実施済み 保証あり 』 プリメインアンプ


  • Product Quantity
    : 1
  • Starting Bid
    :78,600円
  • Highest Bidder
    : / Rating:
  • Listing Date
    :2026年01月11日 21時18分
  • Bidding closes on
    :2026年01月18日 21時18分
  • Auction Number
    :h1205418379
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. It is possible that the product can only be picked up by yourself, and the self-pickup fee is quite high, please check the page to confirm
  3. ※Please confirm whether it is animal fur. Animal fur products are in conflict with the Washington Treaty and cannot be shipped internationally.


The
The

AU-D907F EXTRA (S-A)

商品説明
ご覧頂きありがとうございます。

Sansui 上位機 AU-D907F EXTRA 『動作品』です。

現在のアンプでは味わえない
オーディオ全盛期のヴィンテージアンプ!
です。

スーパーフィードフォワードシステム 搭載
サンスイトーン健在のアンプです。
175,000 円 (1981年発売)


濃厚で、ふわっと来る低音がいいです!
オーディオ全盛期で上位機の音が今でも
お楽しみできます。

ヴィンテージのアンプは、数十分の暖気する事
で、本領発揮する様に思います。
(主観ですので参考までに)

音に関しては、測定器を用いて
測定はしてませんが、問題は無くレコード、CD
を良い音出しております。
また、各部のガリ音は整備後出ておりません。

音質向上の目的で、
入力部~出力部間のスイッチ部接点を『分解』し
クリーニングしています。
(1日5時間)3日以上音出し確認実施しております。


最後までお読みになり、納得(同意)の上、
入札お願い致します。

『中古品です、新品同様をお探しの方、神経質の方は入札をお控え下さい』
*基本は、ノークレーム、ノーリターンでお願い致します。


外見は、
目立たない程度のすり傷、タッチペン処置、補修箇所、錆があります。
致命的な傷はありません。
内部、外部とも比較的ですが綺麗です。
(主観です)

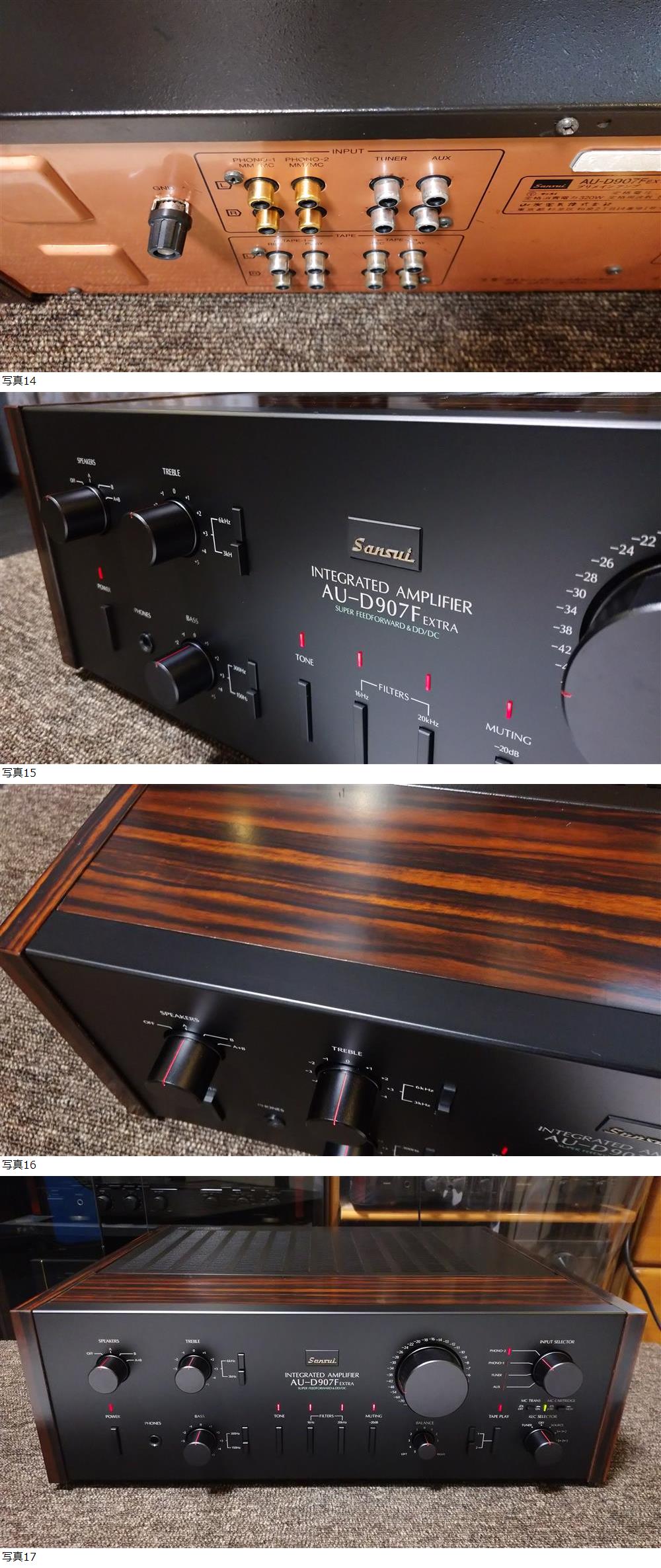

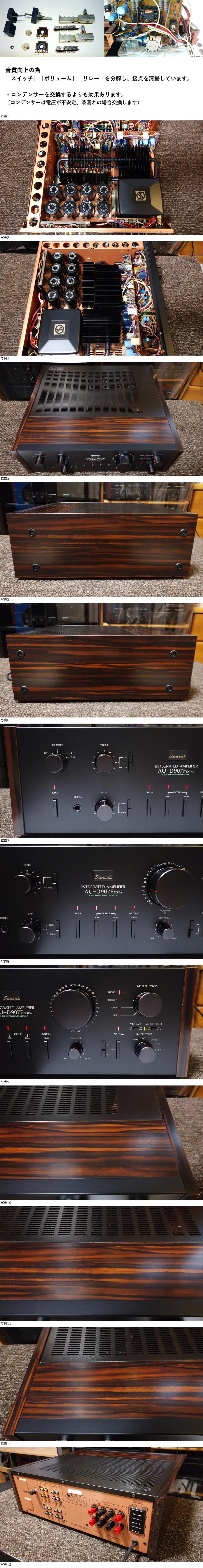

写真にてご確認下さい。
*写真では写りきらない傷もあるものと思って下さい。


『整備内容』
* Input、rec selector分解清掃
*各スイッチ分解清掃
*メインボリューム分解接点清掃
*バランス、トーンボリューム接点清掃
*スピーカーリレー接点清掃
*各基板ハンダクラック修正
*コンデンサー固定用ボンド清掃(POWER基板)
*入力端子清掃
*内外部、清掃
*BIAS、DC_0V、確認調整
(BIAS・サービスマニュアル値)

『確認項目』
.....* phono MC,MM 正常
.....* tuner,aux,tape1,2 正常
.....* tone,balance,各スイッチ 正常
.....* RECセレクター 正常
.....* 各部ガリ音 無し
(長期操作しないか所はガリの発生する可能性あります)



『保証』 発送日から90日間保証の対応致します。

*「音が出ない、電源が入らない、ノイズが出る」
場合は修理対応致します。
「その際の送料は『出品者』が負担致します」

*修理が不可能な場合は返金対応致します。
*返金の場合は、落札金額のみ返金致します。
*振り込み手数料及び送料は返金出来ませんので、ご了承下さい。
*運送事故で破損した場合は、運送業者へ相談して下さい。

『上記の異常が発生している場合』
①取引ナビにてご一報ください。
「落札者様の判断で返送しないで下さい、保証対象外になります」
出品者側にて症状を把握した後、返送を依頼致します。
(音が出ない場合故障ではない可能性があります)
②取引ナビにて症状をできるだけの記入お願いします。
「異常の症状、接続されている機器、接続状態、セレクターの位置、等をお知らせ下さい」

注意事項
『商品の状態・注意事項1』
*側板に補修箇所タッチペンにて処置あり
*錆あり
*目立たない程度のすり傷あり
*ヴィンテージアンプの為故障のリスクあり
*付属品無し
*動作確認後の出荷の為発送に2日から4日かかる場合がございます。

『注意事項2』
*落札後のキャンセルは対応出来ませんのでご了承下さい。
*支払い後のキャンセルの場合、落札金額の70%での返金は対応致します。
*商品到着後のキャンセルは対応出来ませんのでご了承下さい。
*転売される方へ、転売した時点で保証対象外になります、ご了承下さい




*【ヴィンテージアンプの購入を検討されている方へ】アドバイスです!

1,『保証が無い、又は到着後7日間しか保証が無い場合は要注意』

・アンプの場合保証が1か月以上あるところから購入して下さい。
(理由)
数年、数十年間眠っていた可能性が有り、整備直後は不具合の症状無くても
数十日後に不具合が出る可能性が有ります。
また、到着後より7日以内で有れば返金修理対応の場合7日以降対応してくれません
もし対応してくれたとしても往復の送料代は購入者が負担する事になります。


2,『ボリュームの丸洗いやメインボリュームに接点復活剤を吹き付け対応した機種は要注意』

・ボリュームは丸洗いできません、メインボリュームは分解が必要です、(分解には特殊工具と技術が必要です)
・この機種のトーンとバランスのボリュームは構造上分解できません特殊清掃器具が必要です。
(理由)
丸洗いするとグリスが解け出し、回した時のネットリ感が無くなりスカスカな回転になってしまいます、
スカスカになると固定しているネジがゆるみガクガク遊びができてしまいます。
*接点復活剤を吹き付けの対応は軸を伝わりグリスが解けスカスカになる原因になります。
*接点復活剤吹き付けの対応は、一時的に良くなるかもしれませんが、半年後、1年後に
ガリが再発する可能性あります。

*接点復活剤吹き付けの対応は絶対にやってはいけません。

お支払方法
* ヤフー簡単決済

その他
『音が出ない場合下記の確認等を試して下さい』

*アンプの場合
・接続した端子とインプットセレクターが有っているか
・ヘッドホンにて音が出るか
・スピーカーAB切り替えがOFFになっていないか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続

*CDプレイヤーの場合
・輸送LDロックがある場合解除(外す)
・ヘッドホンから音が出るか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続



最後まで読んで頂きありがとうございました。
では、よろしくお願い致します。

moz-SOUND
*古物商許可証 【第431040038626号/埼玉県公安委員会】




『解説』

AU-D907FのEXTRAバージョンとして改良が施されたインテグレーテッドアンプ。

パワーアンプ部にはサンスイ独自のスーパーフィードフォワードシステムを採用しています。
AU-D907F EXTRAではこの回路のさらなる高品質化を図るため、エラーコレクションアンプにMOS-FETを採用しています。
バイポーラトランジスタの5倍以上のスイッチングスピードを持ち、
さらに広帯域特性や温度の安定性に優れたMOS-FET用回路を使ったことによってエラーコレクションアンプが
作り出す歪打ち消し信号の安定ドが向上しています。
また、プリドライバ段にはTIM歪を限りなくゼロに抑えたダイアモンド差動回路を搭載しています。

MCカートリッジに対応するため、リニアステップMCトランスを搭載しています。
このトランスはサンスイのアンプ技術とトランス技術を反映させたもので、パーマロイ5重シールド構造、
78%0.1m/mLタイプパーマロイコアを採用するとともに太い巻線をバランス特殊巻線構造にしており、
さらにマイクロフォニック・ショックノイズ対策も施さています。これにより動特性が良く、ワイドレンジでSN比の高いトランスを実現しています。
また、あらゆるMCカートリッジに対応するためHighインピーダンスとLowインピーダンスの切替が可能です。

電源部にはレギュレーションに優れたCIコアによるバランス巻線の大型トランスを採用しています。
また、コンデンサーにはハイスピード・超低倍率のオリジナルαコンデンサーを新開発して採用しており、
12,000μF×4によって低域の音作りを行い、4,700μF×4のαコンデンサーでは中域以上の充実を図っています。
さらに、ファーストリカバリーダイオードを採用することで再生音のハイスピード化を図っています。
またトータル5電源構造とすることで左右の独立とステージ間の干渉排除を図っています。

イコライザー回路にはダイアモンド差動回路のDCアンプ構成を採用しています。
初段はペア特性が良く、ローノイズ、ハイgmのデュアルFETを用いた差動回路を採用しており、
入力インピーダンスによる影響を受けないカスコード・ブートストラップ回路を構成しています。
また、2〜3段はドライブ能力に優れたダイアモンド差動回路と電流差動プッシュプルで構成しています。
そして、出力段はダーリントン接続によるSEPP回路で充分な電流余裕を得ており、低出力インピーダンスと低インピーダンスNF回路で
負荷インピーダンスの変化にも十分なダイナミックレンジがとれ、SN比も向上しています。
また、DC領域の安定化を行いながら出力コンデンサーを排除するため、DCサーボを採用しています。

マグネットディストーションを排除するための素材・コンストラクションを採用しています。
AU-D907F EXTRAではシャーシに銅メッキを施すことで非磁性体化し、アンプの骨組みから磁気歪を排除しています。
また、ヒートループを中央に配し、発熱などによる影響から解放することで磁気フラックスを避けることに集中できるコンストラクションとなっています。
さらに、NM(ノンマグネティック)素子の採用などによってマグネット・ディストーション対策を徹底しています。

16Hzのサブソニックフィルターと20kHzのスーパーソニックフィルターを搭載しています。

トーンコントロールにはターンオーバー周波数切替機能を搭載しています。

2系統のソースが独立するレコーディングセレクターと2回路テープモニター/コピー機能を搭載しています。

リアルウッドのサイドパネルを採用しています。

金メッキフォノ入力端子を採用しています。


機種の定格
型式 インテグレーテッドDCアンプ

実効出力 130W+130W(8Ω、10Hz〜20kHz、THD 0.003%)
130W+130W(8Ω、1kHz、THD 0.002%)
全高調波歪率(10Hz〜20kHz、実効出力時) 0.003%以下(8Ω)
混変調歪率(60Hz:7kHz=4:1、SMPTE) 0.003%以下(8Ω)
出力帯域幅(IHF、両ch動作、THD 0.02%) 5Hz〜80kHz(8Ω)
ダンピングファクター(新IHF、20Hz〜20kHz) 100(8Ω)
周波数特性(1W) DC〜300kHz +0 -3dB
エンベロープ歪 測定限界以下
TIM歪(Sawtooth法) 測定限界以下
スルーレイト ±250V/μsec(8Ω)
ライズタイム 0.5μsec

入力感度/入力インピーダンス(1kHz) Phono1、2 MM:2.5mV/47kΩ
Phono1、2 MC(Low/High):70μV(3.2Ω)/250μV(40Ω)
Tuner、Aux、Tape play1、2:250mV/27kΩ
Phono最大許容入力(1kHz、THD 0.01%) MM:200mV
MC:25mV(low)、トランス方式
出力レベル/インピーダンス(1kHz) Tape rec(PIN):250mV(47kΩ)/600Ω
全高調波歪率(20Hz〜20kHz、5V出力時) Phono1、2 MM:0.005%以下
Phono1、2 MC:トランス方式
RIAA偏差(MM、Rec out) 20Hz〜300kHz ±0.2dB
SN比(Aネットワーク、ショートサーキット) Phono1、2 MM:90dB以上
Phono1、2 MC:75dB以上(Low)
Tuner、Aux、Tape play1、2:110dB以上
Phono入力換算雑音
(Aネットワーク、ショートサーキット) Phono1、2 MM:-142dBV
Phono1、2 MC:-155dBV
チャンネルセパレーション(1kHz) Phono1、2 MM:60dB以上
Phono1、2 MC:50dB以上
Tuner、Aux、Tape play:80dB以上
トーンコントロール Bass:±10dB(50Hz)
Treble:±10dB(10kHz)
トーンセレクター Bass:150Hz、300Hz
Treble:3kHz、6kHz
フィルター Low:16Hz(-3dB、6dB/oct)
High:20kHz(-3dB、6dB/oct)
オーディオミューティング -20dB

定格消費電力(電気用品取締法) 320W
外形寸法 幅460×高さ160×奥行444mm
重量 17.7kg
以上

発送詳細
『発送方法』 埼玉県より着払いで発送いたします。
* ヤマト運輸
* 140から160にて発送予定です。
* プチプチと段ポールを使用し梱包は十分に注意致します。
* 梱包材は、リサイクル品を利用します。

* 『手渡しOK』 (朝霞市 外環和光北インター付近)
(梱包は致しません)

* * *この案内は、アップロードした写真からタイトルと商品紹介がAIで自動生成できる いめーじあっぷで作成しました。(無料) * * *
