整備済・東京無線電機製 マジックアイ付 5球スーパーラジオ


本体正面の画像です

本体背面の画像です

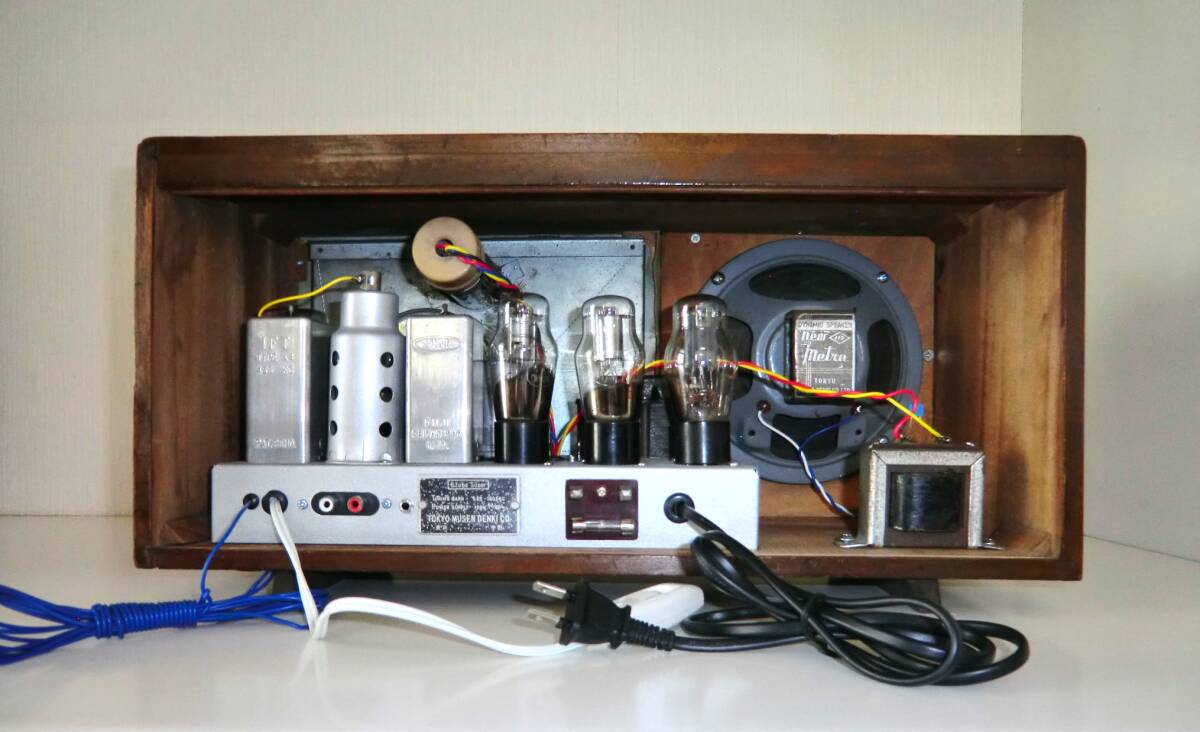

背面板を外し内部の画像です

本体各方面からの画像です

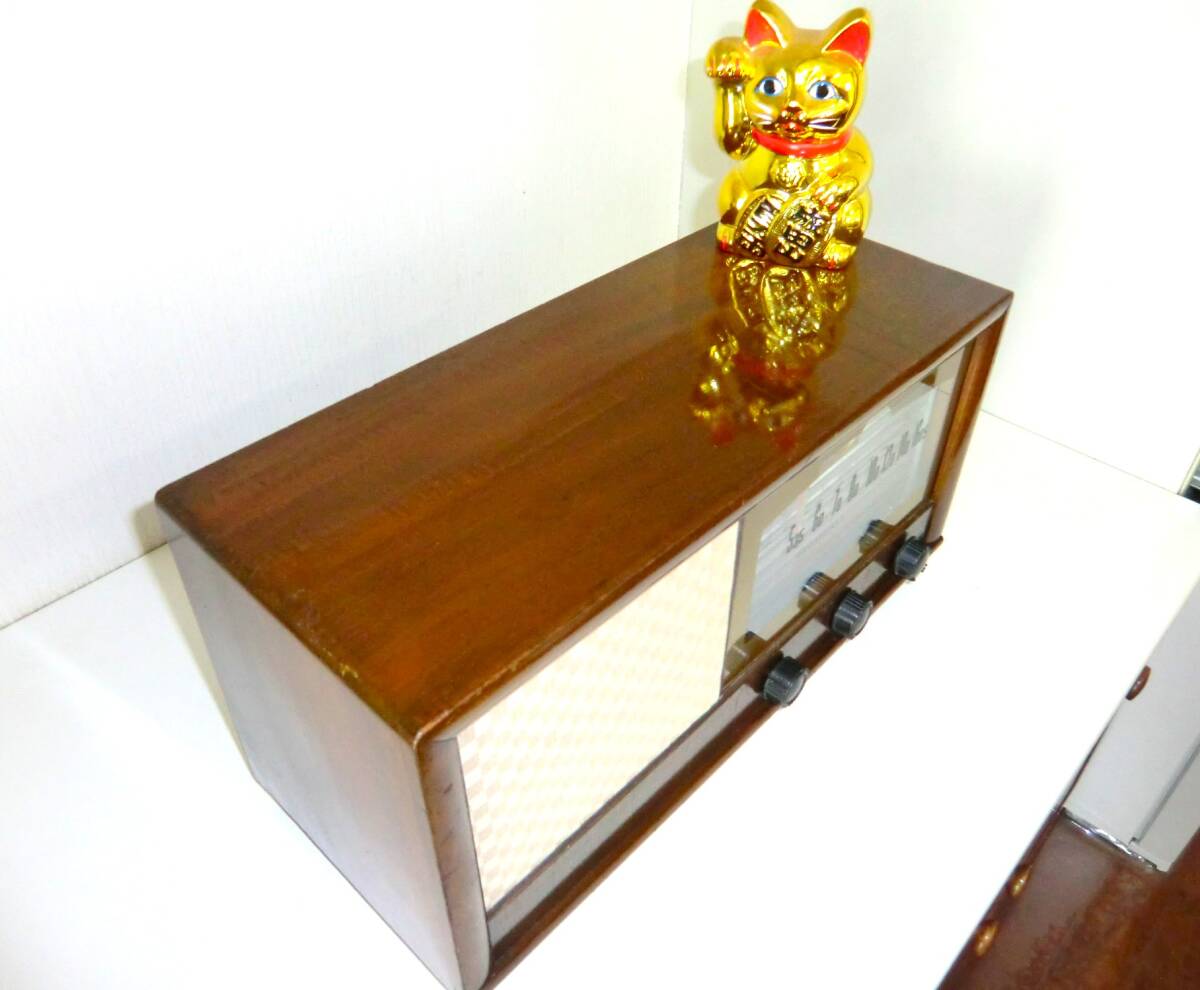

猫ちゃんの置物が天板にクッキリと写って・

調整中のシャーシ部の画像です

CDプレーヤーを接続して視聴中の画像です

マジックアイの拡大画像・瞳が閉じています

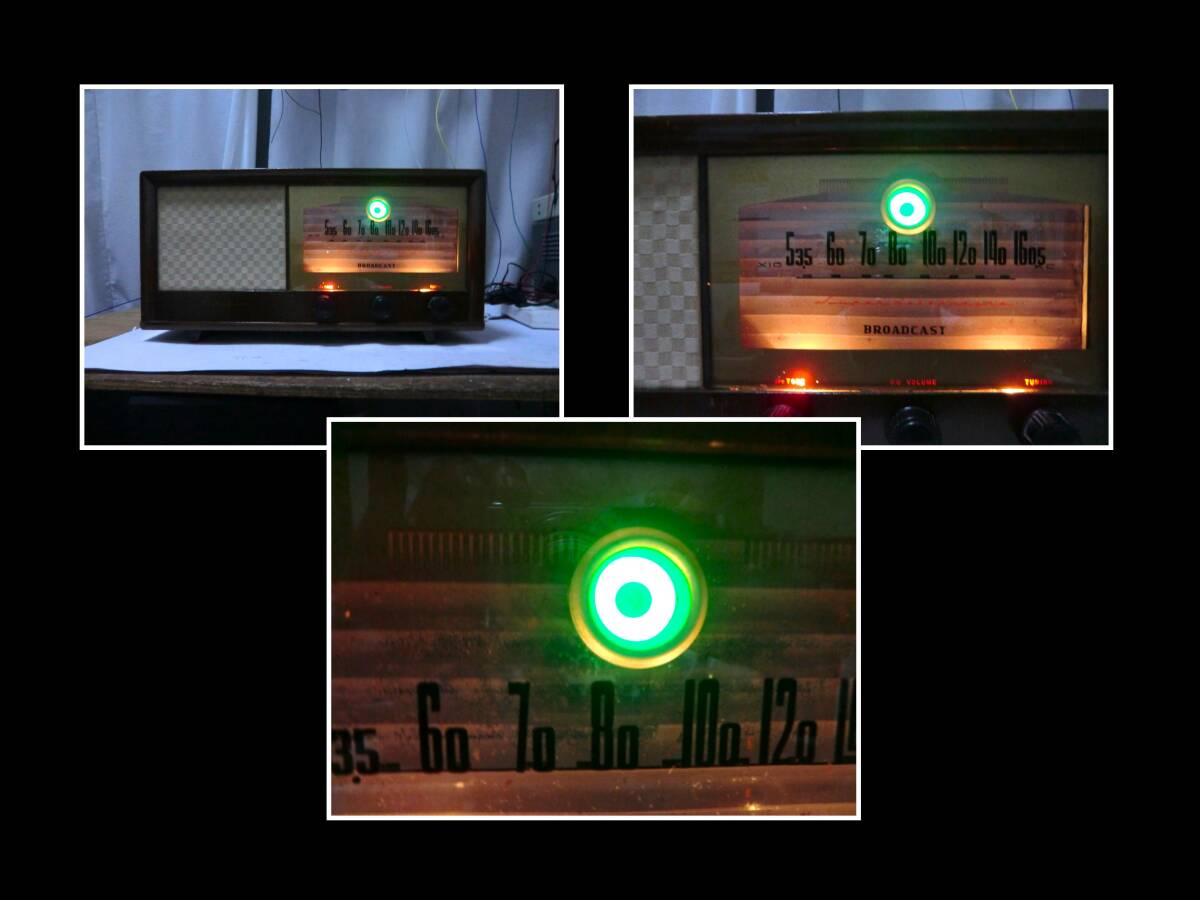

受信中の本体各方面からの画像です

  • Product Quantity
    : 1
  • Starting Bid
    :1,000円
  • Highest Bidder
    : otttter / Rating:2696
  • Listing Date
    :2025年09月02日 13時22分
  • Bidding closes on
    :2025年09月09日 21時18分
  • Auction Number
    :j1198624375
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Radio-related products have commodity inspection issues. If you confirm that the product is for personal use, you can place a bid to purchase it.
  2. Faulty product, please pay attention before subscribing
  3. The page has a fragile description, and fragile items cannot be shipped by sea. They can only be shipped by air. If the goods are not fragile, they can be shipped by air.
東京無線電機製 マジックアイ付 5球スーパーラジオ 整備済品の出品です

東京無線電機製・マジックアイ付・5球スーパーラジオの出品にあたり整備調整し受信状態良好です。


【このラジオの特徴】

 東京無線電機製 マジックアイ付 5球スーパーラジオは一般的な家庭用5球スーパーラジオです。整流回路に2段整流回路を採用したのでハムの発生を極力抑えています。外部接続端子(PU・ピックアップ端子)としてRCA型端子の横に3,5mmステレオミニジャック(出る音はモノーラルです)を新設しましたのでスマフォ、CDプレーヤー、レコードプレーヤー等を接続して真空管特有の暖か味のある音をお楽しみ下さい。外部接続機器を使用時、音量調整は外部機器側で行ってください。RCA型端子も使用可能です。


【整備内容】

* 整備としては、キャビネット(木製の外箱)からガラス製ダイアル板を取り外し洗浄後ガラス磨き材で磨き透明度がオリジナルに近くなりました。

* 木製のキャビネットは再塗装されていて若干のすり傷や塗装面の曇りなどある為、塗装面を清浄した後同色の欅色のウレタンニスで塗装し輝きのある塗装面となりました。

* シャーシが油汚れと錆が発生していて、内部の配線も劣化が酷く空中配線などある為この際全ての部品を取外し最初から組立を行いました。幸い真空管ソケットがねじ止めでソケットの取外しも楽に出来ました。シャーシは錆落し後、シルバーのスプレー塗装で仕上げました。

* コンデンサーはすべて新品のフィルムコンデンサー、セラミックコンデンサー等に抵抗も大半中古未使用品などに交換しました。発信回路のコンデンサーは容量確認後使用しました。

* ツマミは3個の内1個欠品となっていたので3個揃った手持ちのツマミに交換しました。

* 使用真空管はすべてエミッション値を真空管測定器でチェックしてあります。出力管 6ZP1, 検波・低周波増幅管 6ZDH3A のエミッション不良で手持ちの中古良品に交換しました。

* IFT(中間周波トランス)B型の調整不良(ケース内のCを新品に交換後も)の為、IFT(A),(B)共手持ちの中古良品に交換しました。

* 出力トランスの1次巻き線断線の為、手持ちの中古品に交換しました。

* マジックアイの緑に輝く表示蛍光面が暗く使用不可の為、新品の6S5G(両開き型)に交換しました。

* 音質調整ボリュームの抵抗値不良の為、新品のS付ボリュームに交換しました。

* 平滑回路用の電解コンデンサーは使用出来る状態ですが将来を考え、新品のチューブラコンデンサーに交換しました。古い電解コンデンサーはダミーで残しました。

* 本体正面のサランネットに変色と破れがあり茶色の格子柄のネットに交換しました。

* バリコン取り付けゴムが劣化硬化していたので新品ゴムクッションに交換、AC用コード、フューズ、パイロットランプ、ダイアル糸等の交換をしました。

* ピックアップ端子として使いやすい ステレオ用3,5mmミニジャック(出る音はモノーラルです)をRCA式端子の横に新設しました。スマフォ、CDプレーヤー等を接続して伸びやかで温かみのある真空管特有の音をお楽しみ下さい。PU端子板が破損していたので新品のRCA式端子に交換しそのまま使用可能の状態にしてあります。

* マジックアイ用のスイッチはシャーシの背面に白色のACコード付きの小型のスナップ・スイッチを付けました
このスイッチは大変重要です。注意事項の項に詳しく記載してありますので参照下さい。

* IFT調整、トラッキング調整(単一調整)をして感度よく受信します。

* 使用真空管(ST管)6WC5, UZ-6D6, 6ZDH3A, 6ZP1, KX-80BK, マジックアイ・ 6S5G(両開き型)の6球編成です。

* ツマミは前面下部に3個配置されています。

   1)一番左側のツマミは電源用と音質調整用です。右に回すと電源が入り無段階で順に 高音~低音に変化します。

   2)左側から2番目のツマミはPH(ピックアップ~外部入力)とラジオ受信の 音量調整のボリュームです。左一杯にツマミを回すとPHに切り替わります。現在はラジオ受信側に設定してあります。

   3)右端のツマミはチューナー(同調)用で好みの放送を選択します。マジックアイが一番閉じる位置が同調点です。


* アンティークラジオはアンテナが必要です。付属のアンテナ用ビニール電線をお付けしました。室内に一杯に伸ばして使用して下さい。電波の強い地域でもアンテナ線は張って下さい。マジックアイが閉じにくくなりますので・・とても感度よく大きな音で受信します。千葉市から約15kmの当地でNHK第一、第二放送等うるさい程でボリュームをほんの少し廻した状態で使用する程でした。

* 受信安定性 : 半日ほど受信を継続してみましたが異常なく安定して受信出来ました。

* 外形寸法  横幅 : 46cm, 奥行き : 21cm, 高さ : 23cm (凡その寸法) 重量 : 約5kg

  家庭用ラジオとしては中型の部類です。前面左側は半分に茶色の格子柄のネットを配し、右に大型の透明のガラス板のダイアル板は見事なコントラストを演出していてとても印象的なデザインです。シックなデザインは現在でも和洋室両方にマッチしていると思います。アンティークな置物としてもお奨めです。


【注意事項】

1) マジックアイのスイッチ: マジックアイは他の真空管に比べてその寿命が大変短いです。緑色の蛍光面の寿命が短いためです。出来るだけ長持ちさせるために放送受信しチューニング後は必ず本体背面に取り付けてありますスナップスイッチスを切ってお使い下さい。外部接続でスマホ、CDプレーヤー等を接続して視聴中はマジックアイは点灯したままですので必ず背面のスナップスイッチで切ってお使いください。又、長く放送を受信する場合も是非このスイッチを使用して下さい。またラジオ本体の設置場所は出来るだけ直射日光がラジオの正面に当たらないような場所に置いて下さい。緑に光る蛍光面は直射日光で劣化致しますので・・マジックアイは真空管の中では入手困難で高価な真空管です。大事にお使い下さい。
**マジックアイの寿命ですが、実用的におおよそ 100時間位と言われています。これは1日に2時間使用した場合寿命は何と50日~2ヶ月弱とゆうことになります。是非、注意してご使用ください。

2) 青色の約4メートルのアンテナ線をお付けしてあります。受信状態は地域、設置場所によって異なります。古典ラジオはアンテナが必要です。必ず室内に伸ばしてお使てい下さい。

3) 半世紀以上の製造品です。トランス類、真空管等大半の部品は全て当時の物です。現状の受信状態は将来の品質を保証するものではありません。その為、入札金額をジャンク品相当の価格に設定してあります。

4) 経年による汚れ、擦り傷、当たりキズ、色やけ等あります。神経質な方、美品や新品をお求めの方の入札はご遠慮下さい。

5) 悪い評価の多い方は評価内容に依って入札を取り消させて貰う場合があります。また、新規の方の入札は混乱を防ぐ意味で質問欄からお問い合わせください。ご理解の程よろしくお願い致します。

6) 発送は ゆうパック便の着払いです。

7) 落札後、24時間以内に何のご連絡が無い場合、及び連絡後3日以内に何の連絡無くご入金の手続が無い場合,落札を取り消す場合があります。連絡や入金が遅れる場合は必ずご連絡下さい。取り消された場合、悪い評価を付けますのでご承知置き下さい。

8) 発送は入金確認後、2~3日後に発送致します。


* 追加画像でご確認ください。

The
シャーシ内部の画像です

The
RCA端子、ミニジャックにM-アイ用スナッスイッチ

The
本体底部の画像です

The
シャーシ部上からの画像です

The
キャビネットに収める所の画像です

The
交換部品類・IFT、真空管、ボリューム、ツマミ等

The
受信中の本体正面の画像です
