Sansui サンスイ AU-D907F 『 オーバーホール 実施済み 保証あり 』 プリメインアンプ


  • Product Quantity
    : 1
  • Starting Bid
    :71,600円
  • Highest Bidder
    : / Rating:
  • Listing Date
    :2026年01月11日 21時25分
  • Bidding closes on
    :2026年01月18日 21時25分
  • Auction Number
    :l1208927589
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. It is possible that the product can only be picked up by yourself, and the self-pickup fee is quite high, please check the page to confirm
  3. ※Please confirm whether it is animal fur. Animal fur products are in conflict with the Washington Treaty and cannot be shipped internationally.


The
The

AU-D907F

商品説明
ご覧頂きありがとうございます。

Sansui 上位機 AU-D907F『動作品』です、
スーパーFFダイアモンド作動回路搭載
サンスイトーン健在のアンプです。
販売価格 168000円 (1980年頃)

907Fは、両サイドに木製化粧パネルが
標準で付いていませんが、正面パネルの幅が
445mmなので、存在感あります。

また、電源トランスは、EXTRAシリーズよりも
大きいサイズを搭載し、
PHONOのMC、MM電源は独立した電源になっています。
ゴリ押しのSansuiトーン『907F』です。

レコード、CDともに問題はありません。

濃厚で、ふわっと来る低音がいいです!
オーディオ全盛期で上位機の音が今でも
お楽しみできます。

ヴィンテージのアンプは、数十分の暖気する事
で、本領発揮する様に思います。
(主観ですので参考までに)

今後、この仕様を作るには、コスト的に
困難なのではないでしょうか!


外見は、
細かい傷、タッチペン修正箇所などありますが、
命的な傷はなく綺麗な状態です。(主観です)

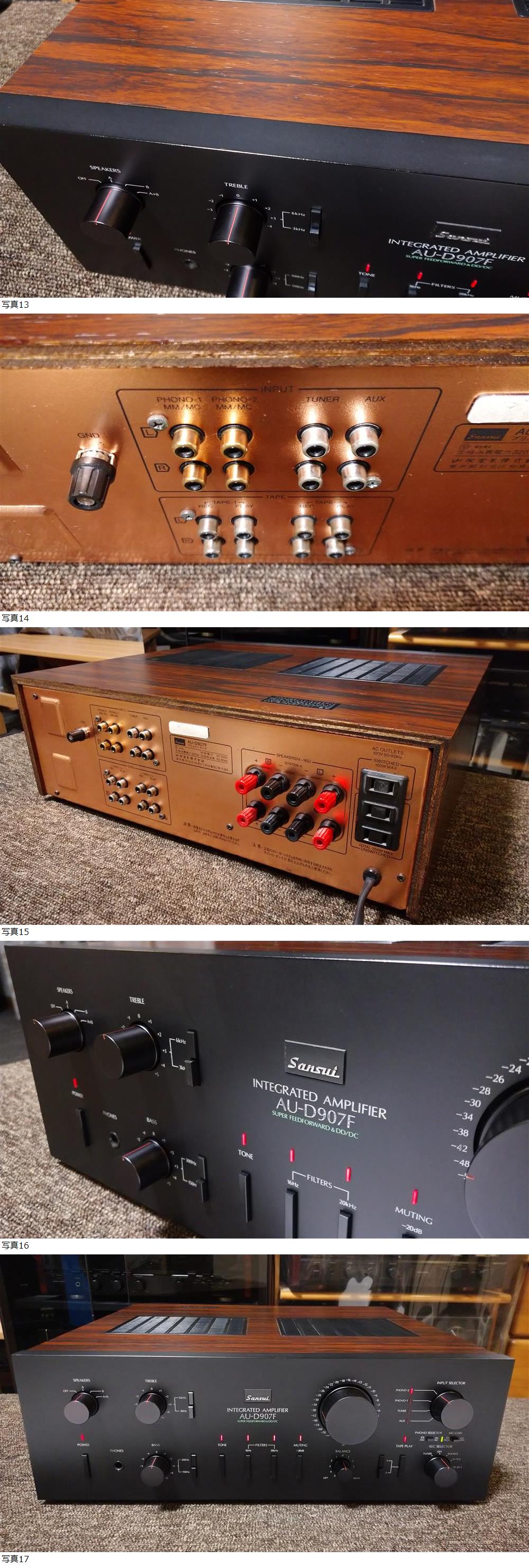

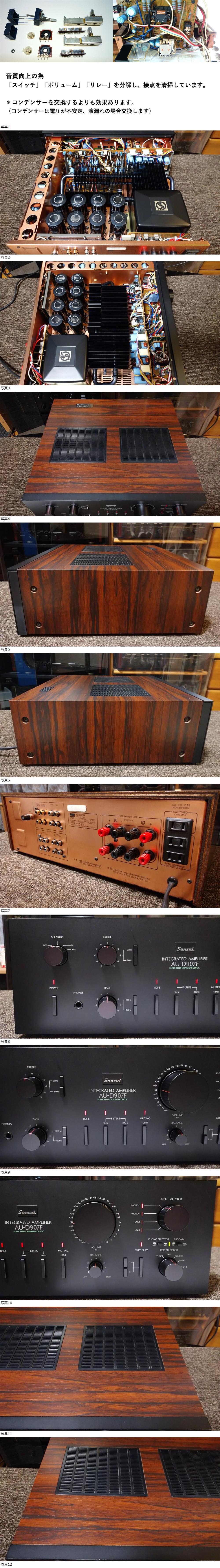

写真にてご確認下さい。
*写真では写りきらない傷もあるものと思って下さい。

音に関しては、測定器を用いて
測定はしてませんが、問題は無くレコード、CD
を良い音出しております。
また、各部のガリ音は整備後出ておりません。

音質向上の目的で、
入力部~出力部間のスイッチ部接点を『分解』し
クリーニングしています。
(1日5時間)3日以上音出し確認実施しております。


最後までお読みになり、納得(同意)の上、
入札お願い致します。

『中古品です、新品同様をお探しの方、神経質の方は入札をお控え下さい』
*基本は、ノークレーム、ノーリターンでお願い致します。


『整備内容』
* Input、rec selector分解清掃
*各スイッチ分解清掃
*メインボリューム分解接点清掃
*バランス、トーンボリューム接点清掃
*スピーカーリレー接点清掃
*各基板ハンダクラック修正
*入力端子清掃
*内外部、清掃
*BIAS、DC_0V、確認調整
(BIAS・サービスマニュアル値)

『確認項目』
.....* phono MC,MM 正常
.....* tuner,aux,tape1,2 正常
.....* tone,balance,各スイッチ 正常
.....* RECセレクター 正常
.....* 各部ガリ音 無し
(長期操作しないか所はガリの発生する可能性あります)



『保証』 発送日から90日間保証の対応致します。

*「音が出ない、電源が入らない、ノイズが出る」
場合は修理対応致します。
「その際の送料は『出品者』が負担致します」

*修理が不可能な場合は返金対応致します。
*返金の場合は、落札金額のみ返金致します。
*振り込み手数料及び送料は返金出来ませんので、ご了承下さい。
*運送事故で破損した場合は、運送業者へ相談して下さい。

『上記の異常が発生している場合』
①取引ナビにてご一報ください。
「落札者様の判断で返送しないで下さい、保証対象外になります」
出品者側にて症状を把握した後、返送を依頼致します。
(音が出ない場合故障ではない可能性があります)
②取引ナビにて症状をできるだけの記入お願いします。
「異常の症状、接続されている機器、接続状態、セレクターの位置、等をお知らせ下さい」

注意事項
『商品の状態・注意事項1』
*目立たない程度の細かい傷、タッチペン処理あり
*ヴィンテージアンプの為故障のリスクあり
*付属品無し
*動作確認後の出荷の為発送に2日から4日かかる場合がございます。

『注意事項2』
*落札後のキャンセルは対応出来ませんのでご了承下さい。
*支払い後のキャンセルの場合、落札金額の70%での返金は対応致します。
*商品到着後のキャンセルは対応出来ませんのでご了承下さい。
*転売される方へ、転売した時点で保証対象外になります、ご了承下さい




*【ヴィンテージアンプの購入を検討されている方へ】アドバイスです!

1,『保証が無い、又は到着後7日間しか保証が無い場合は要注意』

・アンプの場合保証が1か月以上あるところから購入して下さい。
(理由)
数年、数十年間眠っていた可能性が有り、整備直後は不具合の症状無くても
数十日後に不具合が出る可能性が有ります。
また、到着後より7日以内で有れば返金修理対応の場合7日以降対応してくれません
もし対応してくれたとしても往復の送料代は購入者が負担する事になります。


2,『ボリュームの丸洗いやメインボリュームに接点復活剤を吹き付け対応した機種は要注意』

・ボリュームは丸洗いできません、メインボリュームは分解が必要です、(分解には特殊工具と技術が必要です)
・この機種のトーンとバランスのボリュームは構造上分解できません特殊清掃器具が必要です。
(理由)
丸洗いするとグリスが解け出し、回した時のネットリ感が無くなりスカスカな回転になってしまいます、
スカスカになると固定しているネジがゆるみガクガク遊びができてしまいます。
*接点復活剤を吹き付けの対応は軸を伝わりグリスが解けスカスカになる原因になります。
*接点復活剤吹き付けの対応は、一時的に良くなるかもしれませんが、半年後、1年後に
ガリが再発する可能性あります。

*接点復活剤吹き付けの対応は絶対にやってはいけません。

お支払方法
* ヤフー簡単決済

その他
『音が出ない場合下記の確認等を試して下さい』

*アンプの場合
・接続した端子とインプットセレクターが有っているか
・ヘッドホンにて音が出るか
・スピーカーAB切り替えがOFFになっていないか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続

*CDプレイヤーの場合
・輸送LDロックがある場合解除(外す)
・ヘッドホンから音が出るか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続



最後まで読んで頂きありがとうございました。
では、よろしくお願い致します。

moz-SOUND
*古物商許可証 【第431040038626号/埼玉県公安委員会】




『解説』

スーパーフィードフォワードシステムを採用したAU-Fシリーズのプリメイン アンプ。

出力段にはスーパーフィードフォワードシステムを採用しています。
一般的な アンプに採用されたNFB回路は歪を改善するだけでなく周波数特性やS/N比、
入出力インピーダンスも改善する技術ですが、完全には歪をゼロにはできず、高域で効果が低下するなどの問題点も持っています。
この問題に対処するためフィードフォワード理論が考案されました。

この理論は出力に発生する歪と全く同じ歪打消し信号をアンプ内部で作り出して合成する事で歪をキャンセルするというものでしたが、
実現不可能とされていました。サンスイではNFBと組み合わせたスーパーフィードフォワードシステムとする事でそれを実現にしています。
スーパーフィードフォワードシステムではNFBは可聴帯域内の歪改善に主に動作しており、
フィードフォワードのための逆位相歪を取り出す役割を担っています。

また、歪打消し信号の増幅にA級動作のエラーコレクションアンプを設けています。
そして、コンピューター技術を駆使して2ポール位相補償に対しても歪キャンセルが可能なシンメトリカル2ポール出力サミング・ネットワークを
開発する事で広帯域にわたって歪除去を可能としています。
この回路により、パワー段で発生する高調波歪や混変調歪、スイッチング歪、クロスオーバー歪などの歪を原理上ゼロにすると同時に、
動的歪であるTIM歪やエンベロープ歪も低減しています。さらに聴感上の音質も改善しています。

パワートランジスタには新開発のNM-LAPT(ノン・マグネティック・リニアパワートランジスタ)を採用しています。

ドライバー段の初段にはデュアルFETを使用しており、カスコードブートストラップ付きの定電流差動回路を採用しています。
2段目にはデュアルコンプリメンタリーによるダイアモンド差動回路を採用しています。

MCヘッド アンプにはプッシュプル入力・出力回路によるシンメトリカルサーキットを改良して採用しており、
2段ダーリントンDC構成の出力部を装備しています。
また、HighポジションとLowポジションの切換によって幅広いカートリッジに対応しています。

イコライザー回路にはダイレクトカップル方式によるダイアモンド差動回路を搭載したDC アンプ構成を採用しています。
初段にはペア特性が良く、ローノイズ、ハイgmのデュアルFETを用いた差動入力回路を採用しており、
入力インピーダンスの影響を受けないカスコード・ブートストラップ回路を構成しています。

また、2段目・3段目はドライブ能力に優れたダイアモンド差動回路と電流差動プッシュプル回路で構成しています。
出力はダーリントン接続によるSEPP回路で十分な電流余裕があり、低出力インピーダンスと低インピーダンスNF回路設計で
負荷インピーダンスの変化に対しても十分なダイナミックレンジを取り、S/N比を向上しています。
また、DCサーボを採用する事でDC領域を安定化させながら出力コンデンサーを排除しています。

電源部にはレギュレーションに優れたCIコアによるバランス巻線の大型トランスを採用しています。
また、トータル8本の大容量・低倍率エッチング、低インピーダンスのカスタムコンデンサーとファーストリカバリーダイオードを採用しており、
強力で立ち上がりの良い電源部を構成しています。
さらに、L/R独立構成で、ステージ間の干渉も排除したトータル5電源とする事で強力な電源部を構成しています。

内部レイアウトはシンプル&ストレートを追求し、最短距離でシンプルな信号経路としています。
また、放熱器にヒートループを用いた新しい放熱システムを採用しています。
これにより従来のヒートシンクでは難しかった電源部とパワー段を近づける設置を実現しており、
大電流が流れる出力トランジスタ付近の線材の引き回しを排除し、ここで発生する電磁波フラックスが プリアンプ部へ飛ぶのを防いでいます。

磁界による信号波形の変調作用であるマグネティックディストーションに注目し、サブシャーシまで銅メッキを施すと共に、
ウッドボンネットやNM素子を採用する事で磁気歪の影響を排除しています。

16Hzのサブソニックフィルターと20kHzのスーパーソニックフィルターを装備しています。

ターンオーバー周波数切換機能付きのトーンコントロールを搭載しています。

2回路テープモニターやレコーディングセレクター/コピー機能を搭載しています。Hi-Fiアンプ

フォノ入力端子には金メッキ端子を採用しています。

ブラックとシルバーの2色のカラーバリエーションがありました。



【機種の定格】

型式スーパー・フィードフォワード&DD/DC アンプHi-Fiアンプ

実効出力120W+120W(8Ω、10Hz~20kHz、THD 0.005%)
120W+120W(8Ω、1kHz、THD 0.003%)
全高調波歪率(10Hz~20kHz、実効出力時)0.005%以下(8Ω)
混変調歪率(60Hz:7kHz=4:1、SMPTE)0.005%以下(8Ω)
出力帯域幅(IHF、両ch動作、THD 0.02%)5Hz~80kHz(8Ω)
ダンピングファクター(新IHF、20Hz~20kHz)100(8Ω)
周波数特性(1W)DC~300kHz +0 -3dB
エンベロープ歪測定限界以下
TIM歪(Sawtooth法)測定限界以下
スルーレイトHi-Fiアンプ±250V/μsec(8Ω)
インサイド・スルーレイト±350V/μsec(8Ω)
ライズタイム0.8μsec

入力感度/入力インピーダンス(1kHz)Phono1、2 MM:2.5mV/47kΩ
Phono1、2 MC:100μV(high)、250μV(low)/100Ω
Tuner、Aux、Tape play1、2:250mV/27kΩ
Phono最大許容入力(1kHz、THD 0.01%)MM:200mV
MC:26mV(Low)
出力レベル/インピーダンス(1kHz)Tape Rec:250mV(47kΩ)/600Ω
全高調波歪率(20Hz~20kHz、5V出力時)Phono1、2 MM:0.005%以下
Phono1、2 MC:0.005%以下
RIAA偏差(MM、Rec out)Hi-Fiアンプ20Hz~20kHz ±0.2dB
S/N比(Aネットワーク、ショートサーキット)Phono1、2 MM:90dB以上
Phono1、2 MC:74dB以上(Low)
Tuner、Aux、Tape play1、2:110dB以上
Phono入力換算雑音(Aネットワーク、ショートサーキット)Phono1、2 MM:-142dBV
Phono1、2 MC:-154dBV
チャンネルセパレーション(1kHz)Phono1、2 MM:60dB以上
Phono1、2 MC:50dB以上
Tuner、AUX、Tape Play:80dB以上
トーンコントロールBass:±8dB(50Hz)
Treble:±8dB(15kHz)
トーンセレクターBass:150Hz、300Hz
Treble:3kHz、6kHz
フィルターLow:16Hz(-3dB、6dB/oct)
High:20kHz(-3dB、6dB/oct)
オーディオミューティング-20dB

定格消費電力(電気用品取締法)320W
外形寸法幅445x高さ163x奥行443mm
重量17.5kg

発送詳細
『発送方法』 埼玉県より着払いで発送いたします。
* ヤマト運輸
* 140から160にて発送予定です。
* プチプチと段ポールを使用し梱包は十分に注意致します。
* 梱包材は、リサイクル品を利用します。

* 『手渡しOK』 (朝霞市 外環和光北インター付近)
(梱包は致しません)
