ONKYO Integra A-810『 オーバーホール実施 保証あり 』 オンキョー プリメインアンプ


  • Product Quantity
    : 1
  • Starting Bid
    :50,100円
  • Highest Bidder
    : / Rating:
  • Listing Date
    :2026年01月11日 21時04分
  • Bidding closes on
    :2026年01月18日 21時04分
  • Auction Number
    :m1185321517
  • Condition
    :Damaged and stained (specify in description)
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. It is possible that the product can only be picked up by yourself, and the self-pickup fee is quite high, please check the page to confirm


The
The

ONKYO Integra A-810

商品説明
ご覧頂きありがとうございます。

ONKYO Integra A-810
145,000円 (1980年頃)

現在のアンプでは味わえない
オーディオ全盛期のヴィンテージアンプ!
です

レコード、CDともに問題はありません

W・スーパーサーボ方式を採用しています
また、ツイントランスを搭載しており、
レコード全盛期のアンプで、MMは勿論
MCカートリッジ対応にも力を入れています

入出力端子には全て金メッキを採用され
メインボリュームもワンランク上のパーツになっており
贅沢なアンプです!

また、2種類のLOUDNESSが選べ好みの低音調整ができます

この後にA-820シリーズとしてモデルチェンジをしていきますが、
A-810もどっしりとした音質でお勧めです

ヴィンテージのアンプは数十分の暖気する事で
本領発揮する様に思います
(主観ですので参考までに)

音に関しては、測定器を用いて
測定はしてませんが、問題は無くレコード、CD
を良い音出しております

音質向上の目的で、
入力部~出力部間のスイッチ部接点を『分解』し
クリーニングしています。
(1日5時間)3日以上音出し確認実施しております


最後までお読みになり、納得した上、入札お願い致します

『中古品です、新品同様をお探しの方、神経質の方は入札をお控え下さい』
*基本は、ノークレーム、ノーリターンでお願い致します

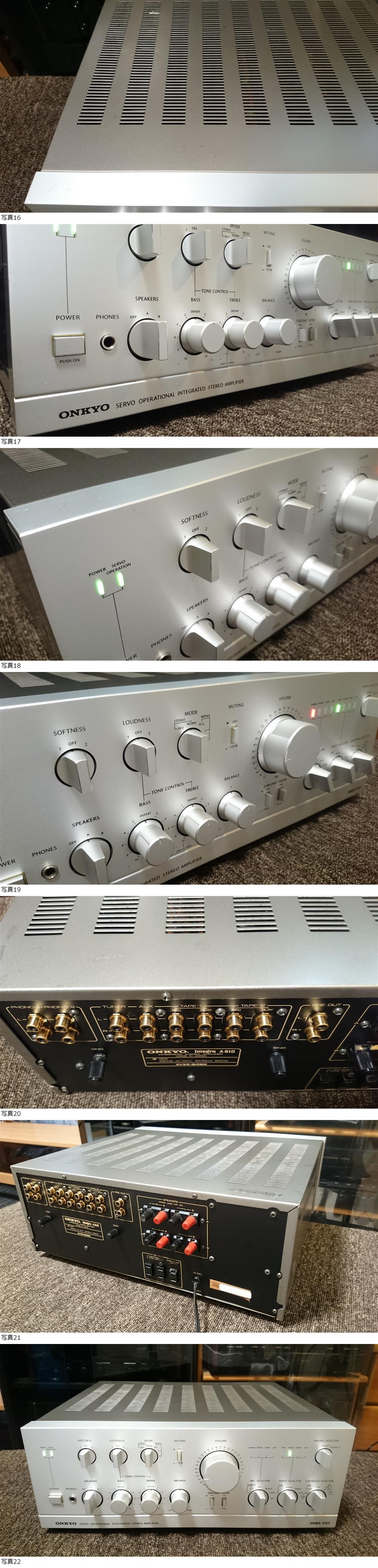

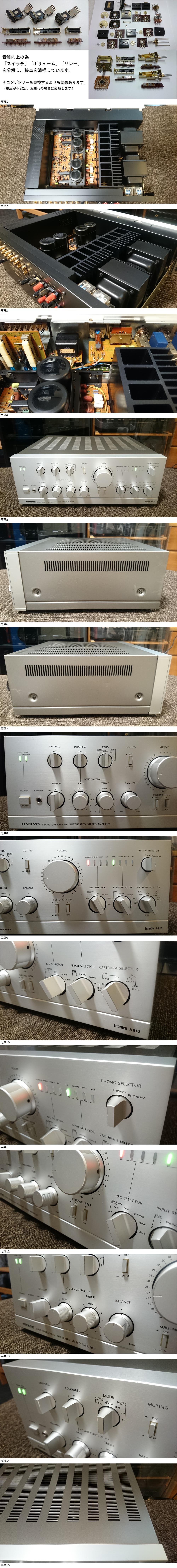

「外見」
細かいスリ傷、カバーに錆、タッチペン補修あります
全体的に綺麗です。
(主観です)写真にてご確認下さい

*表示ランプはLED化

『メンテナンス内容』
* Input、rec selector、各スイッチ、ボリューム、分解清掃
*スピーカーリレー接点清掃
*表示ランプをLEDへ変更
*BIAS、DC_0V、確認調整
*内外部、清掃

『確認項目』
* phono MC,MM 正常
* tuner,aux,tape1,2 正常
* tone,balance,各スイッチ 正常
* RECセレクター 正常
* 各部ガリ音 無し
(長期操作しないか所はガリの発生する可能性あります)




『保証』 発送日から90日間保証の対応致します。

*「音が出ない、電源が入らない、ノイズが出る」
場合は修理対応致します。
「その際の送料は『出品者』が負担致します」
上記以外は修理、返品の対応はできませんのでご了承下さい。

*修理が不可能な場合は返金対応致します。
*返金の場合は、落札金額のみ返金致します。
*振り込み手数料及び送料は返金出来ませんので、ご了承下さい。
*運送事故で破損した場合は、運送業者へ相談して下さい。

『上記の異常が発生している場合』
①取引ナビにてご一報ください。
「落札者様の判断で返送しないで下さい、保証対象外になります」
出品者側にて症状を把握した後、返送を依頼致します。
(音が出ない場合故障ではない可能性があります)
②取引ナビにて症状をできるだけの記入お願いします。
「異常の症状、接続されている機器、接続状態、セレクターの位置、等をお知らせ下さい」

商品の状態、注意事項
『商品の状態、注意事項1』
*細かい傷、すり傷あり
*カバーに錆、タッチペン補修あり
*後ろ面のAC OUTLETSの1カ所に欠けてますが使用可能です
*表示ランプは全てLEDへ変更してます
*ヴィンテージアンプの為故障のリスクあり
*付属品無し。
*動作確認後の出荷の為発送に2日から4日かかる場合がございます

『注意事項2』
*落札後のキャンセルは対応出来ませんのでご了承下さい
*支払い後のキャンセルの場合、落札金額の70%での返金は対応致します
*商品到着後のキャンセルは対応出来ませんのでご了承下さい
*転売される方へ、転売した時点で保証対象外になります、ご了承下さい

支払い方法
『支払い方法』
* ヤフー簡単決済

その他
『音が出ない場合下記の確認等を試して下さい』

*アンプの場合
・接続した端子とインプットセレクターが有っているか
・ヘッドホンにて音が出るか
・スピーカーAB切り替えがOFFになっていないか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続

*CDプレイヤーの場合
・輸送LDロックがある場合解除(外す)
・ヘッドホンから音が出るか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続



最後まで読んで頂きありがとうございます。
では、よろしくお願い致します。

moz-SOUND
*古物商許可証 【第431040038626号/埼玉県公安委員会】



『解説』

Wスーパー方式のステレオプリメインアンプ

パワーアンプ部に出力へのDCリーク、電源インピーダンスに起因するノイズ成分による音質への影響等を、
解決したW・スーパーサーボ方式を採用しています
また、MC対応イコライザアンプにも、超低域カットのスーパーサーボ方式を組み込んでいます

バイアスを一切変動させることなく、回路動作のリニアリティを向上させ、
クロスオーバ歪を抑えるリニア・スイッチング方式を採用しています。
パワートランジスタを2つ採用し、分担して増幅するB級動作ですが、
特殊な補正回路を採用することで波形の継ぎ目に発生しがちなクロスオーバ歪みを抑えています。
さらに、スイッチング歪に対してもHigh fTパワートランジスタの3段ダーリントン構成、
ダブルプッシュプルしようにより、可聴帯域内から追放することに成功しています。

MC-MMコンパチブル・バリアブルゲイン・イコライザと、ハイゲイン・パワーアンプだけという2アンプ構成を採用しています。
イコライザアンプは、MCカートの使用に際しても、ヘッドアンプや昇圧トランス等を必要としない、
電流変換スーパーサーボ方式による、ノンクリック・コンデンサレスNF定数変換方式の開発と、
優れた裸特性の3段差動アンプ等により、S/N向上とハイゲインかを図っています。

またW・スーパーサーボ方式によるパワーアンプは、そのゲインを20dBアップすることで、トーンアンプを省略し、
ワイド・ダイナミックレンジと、低歪率を実現しました。

単に低域・高域の音圧を可変するトーンコントロールとは別に、
3通りの異なったトーンキャラクターをセレクトすることが出来るソフトネス回路を搭載しています。

電源部にはツイン・ワインド方式の大型電源トランスを使用し、整流用ケミコンは、
入念なヒヤリングと素材の物性との相関関係を追及し、マルチタブ方式のローインピーダンス・ワイドレンジケミコンを、
プリント基板と直結させた低インダクタンス回路として使用しています。
また、各セクションの給配電、アースライン等には、暑い銅版製のブス(母線)ラインを使用するなど、
徹底したローインピーダンス化を図っています。

トーンアンプによる音質劣化を除いたダイレクト・トーン方式を採用。

各パートによる温度差を検出し、常に安定した低歪率駆動を可能にしたオート・トラッキング・バイアス方式を採用。

高次高調波の発生を抑えるために、非磁性体材料を使用した音質優先の設計となっています


機種の定格
型式Wスーパーサーボ方式プリメインアンプ
定格出力(20Hz~20kHz)110W+110W(8Ω、AUX→SP out、両ch駆動)
全高調波歪率(20Hz~20kHz)0.008%(AUX→SP out、定格時)
0.006%(AUX→SP out、1/2定格時)
0.003%(PH・MM→Rec out、3V)
0.01%(PH・MC→Rec out、3V)
混変調歪率0.005%(AUX→SP out)
パワーバンドウイズス5Hz~100kHz(IHF-3dB、THD0.2%)
ダンピングファクター100(1kHz、8Ω)
周波数特性20Hz~20kHz ±0.2dB(PH→Rec out、RIAA偏差)
2Hz~100kHz +0dB -1.5dB(AUX→SP out、RIAA偏差)
入力感度/インピーダンスPhono MM:2.5mV/47kΩ-100kΩ
Phono High MC:2.5mV/100Ω
Phono MC:130μV/100Ω-330Ω
Tuner、AUX、Tape Play1、2:150mV/47kΩ
Phono最大許容入力
(1kHz/10kHz 0.05%)Phono MM:300mV/1400mV
Phono High MC:300mV/1400mV
Phono MC:17mV/82mV
出力電圧/インピーダンスTape Rec1、2:150mV/2.2kΩ
Pre Out:1.5V/600Ω
S/N比(IHF A、入力ショート)Phono MM:86dB
Phono MC:69dB
Tuner、AUX、Tape Play1、2:100dB
トーンコントロール(Vol -16dB)Bass(70Hz):±8dB
Treble(20kHz):±8dB
ラウドネス+6dB +4dB、100Hz
サブソニックフィルター15Hz、20Hz 6dB/oct
ミューティング-20dB
電源100V、50/60Hz
消費電力(電気用品取締法規格)200W
ACアウトレットunswitched:1個(200W)
switched:2個(計200W)
外形寸法幅435x高さ170x奥行424mm
重量20.3kg

発送詳細
『発送方法』埼玉県より着払いで発送いたします。
* ヤマト運輸
*160~180サイズにて発送予定です。
* プチプチと段ボールを使用し梱包は十分に注意致します。
* 梱包材は、リサイクル品を利用します。

* 手渡しOK(朝霞市 外環和光北インター付近)
(梱包は致しません)

* * *この案内は、アップロードした写真からタイトルと商品紹介がAIで自動生成できる いめーじあっぷで作成しました。(無料) * * *
