X68000 内蔵型 ACアダプタ式電源◆EXPERT/SUPER/XVI対応◆100W


純正ケースに入れ使う(ケースは付属しない

付属するACアダプタ

5vサブは、背面から引き回せる

  • Product Quantity
    : 1
  • Starting Bid
    :15,000円
  • Highest Bidder
    : ohu******** / Rating:874
  • Listing Date
    :2025年10月23日 19時50分
  • Bidding closes on
    :2025年10月25日 22時50分
  • Auction Number
    :q1203516836
  • Condition
    :Damaged and stained (specify in description)
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. Please note: Sellers with a rating lower than 50 or an overall rating lower than 98% cannot provide compensation for non-arrival of goods. Please choose a reputable seller.

X68000 内蔵型 ACアダプタ式電源◆EXPERT/SUPER/XVI対応◆100W

●商品状態●


X68000の電源の、自作をして、ACアダプタ駆動にしたものです。
使い方は、普通のX68000の電源と同じです。

純正電源の、金属ケースに内蔵する事を前提にしています。
(金属ケースは付属しません)
純正電源の基盤部分が壊れて、ケースだけ余った場合に、最適です。
(ネジは付属しません。純正電源のネジを使います)
落札後に、詳しい説明書をHTMLで提供します。

ACアダプタは、19.5V6.2Aの120Wです。


ACアダプタの19.5Vをコンバートして、12V、5V、-12Vを作っています。
降圧回路は全て、市販品のDCDCコンバーターを使っており、
それらが組み合わされているものです。

市販品のコンバーターを使っているので、
いろいろと安全装置が内臓されています。
5Vラインには、以下の保護機能があります。
   ・自動復帰型、過電流保護回路。
   ・過熱保護回路。
12Vラインには、以下の保護機能があります。
   ・自動復帰型出力短絡保護回路内蔵。
これらに加えて、ACアダプターにも保護機能があるでしょう。

5VSBは、普通に3端子レギュレーターで作っています。
電源ONには、MOSFETではなく、リレーを使っており、発熱が無いです。

◆ノーマル使用だと、余り発熱しない。
 普通に使うだけなら、余り発熱しないので、
 電源とX68000のカバーを外せば、ファンなしでも大丈夫でしょう。
 カバーをすると熱が篭るので、その場合、ファンが必要になりますが、
 本品は発熱が低いので、ファンの回転数を落してあります(10Vぐらいだろう)。

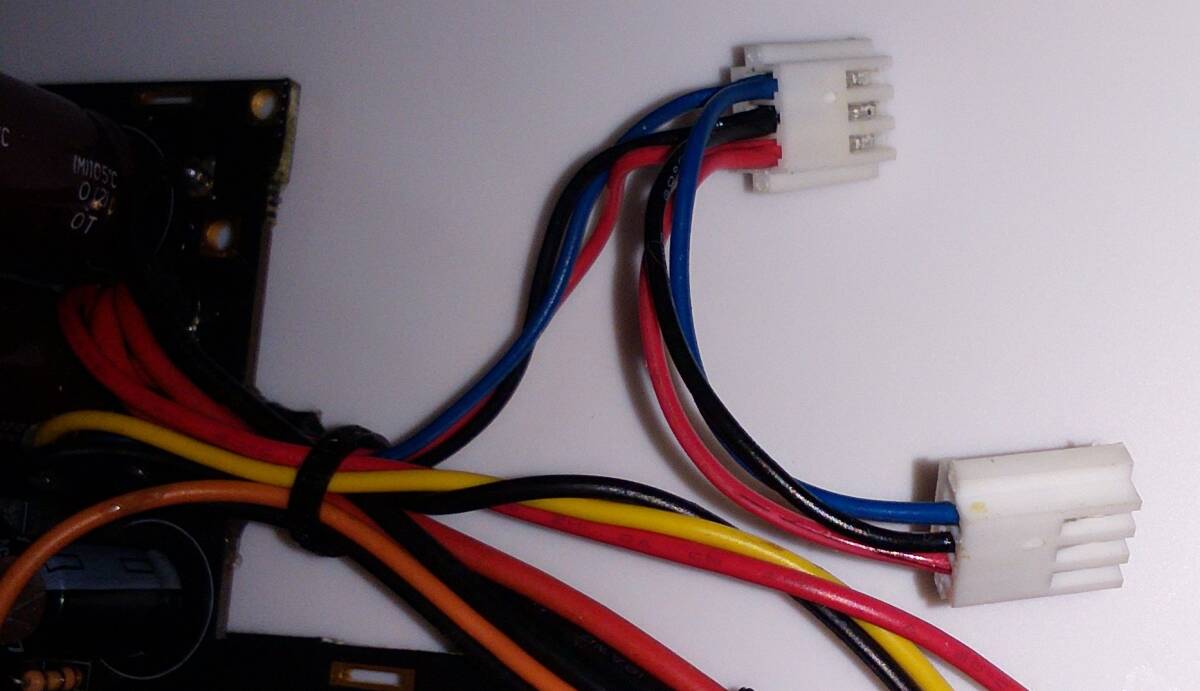

◆5Vサブ電源ケーブルは、背面を通す事が出来る。
  写真にある通りです。
  通常だと、本体底面基盤側を通して、そうすると外すのが大変になるが、
  本品は、長めに作ってあるので、背面に回して接続できます。

◆X68000純正電源の、最大出力容量を満たします。
  以下の容量を満たします。
    5V・・・・12A
         大電流の際はケーブルの先端は内部抵抗等で少し降圧するが、
         電圧にある5V調整用ツマミで調整できる。

    12V・・・2A
         コンバーターの仕様は、3Aまで対応。
    -12V・・・0.2A

         コンバーターの仕様上では、0.15Aが最大ですが、
         かなり余裕を持たせて作ってるようで、0.3Aでも降圧しませんでした。
         長時間使った場合は、どうなるかは不明ですが、
         -12Vは、そんなに使わないので、そのままです。
         基板上には、同様のコンバーターを追加できる回路があるので、
         用途に応じて後で、容量を増やせます。

◆説明書はHTMLで提供する。
  基板上に、コンデンサが追加できたりするので、
  そうした細かな使い方を書いた説明書を、HTMLで提供します。

◆使用に際しては、完全に自己責任で使用していただきます。
 何か電源が原因でトラブルが起こっても、出品者は全く責任を負いません。
 初心者は禁止です。
 ※本電源基板には、100Vを使った回路が無い事から、(最大で19.5V)
   比較的に安全ですが、実際に長期間使っての検証試験は行っていません。
 ※何らかの故障等による危険性が想定される場合は、
   金属カバーに入れて使って下さい。
 ※裸で使うような場合、電源周囲に燃えやすい物を置かない事。

●発送方法●
ヤフオクの発送方法欄参照。
●動作保障●

・到着後1週間以内まで、故障の連絡に対応します。
 パーツ単位の故障には、ヤフオクでの相場に基づいて対応します。
・返送する場合の返送送料は、落札者負担にさせていただきます。
 返送の場合は、簡易ではなく保障のある通常の宅配方法限定です。
・保障の無い発送方法ででは、動作保障は無くなります。
・保障期間中にパーツ変更すると、保障がなくなります。
・分解すると保障がなくなります。
・評価が10に満たないか、悪い場合、保証が付きません。

●お取引●
・一度に複数の品物を落札すると、1個分の送料で発送できます。
・悪質な落札者や、新規の落札者には、取引を行なわず、
 落札者都合にて、削除します。
・3日以上、連絡が取れない場合は、キャンセル扱いになります。
