コメット COMET 7MHz帯、21MHz帯共用小型HFアンテナ CHA721 移動運用セット No.4


CHA-721の全体画像

銘柄CHA-721記載部です。

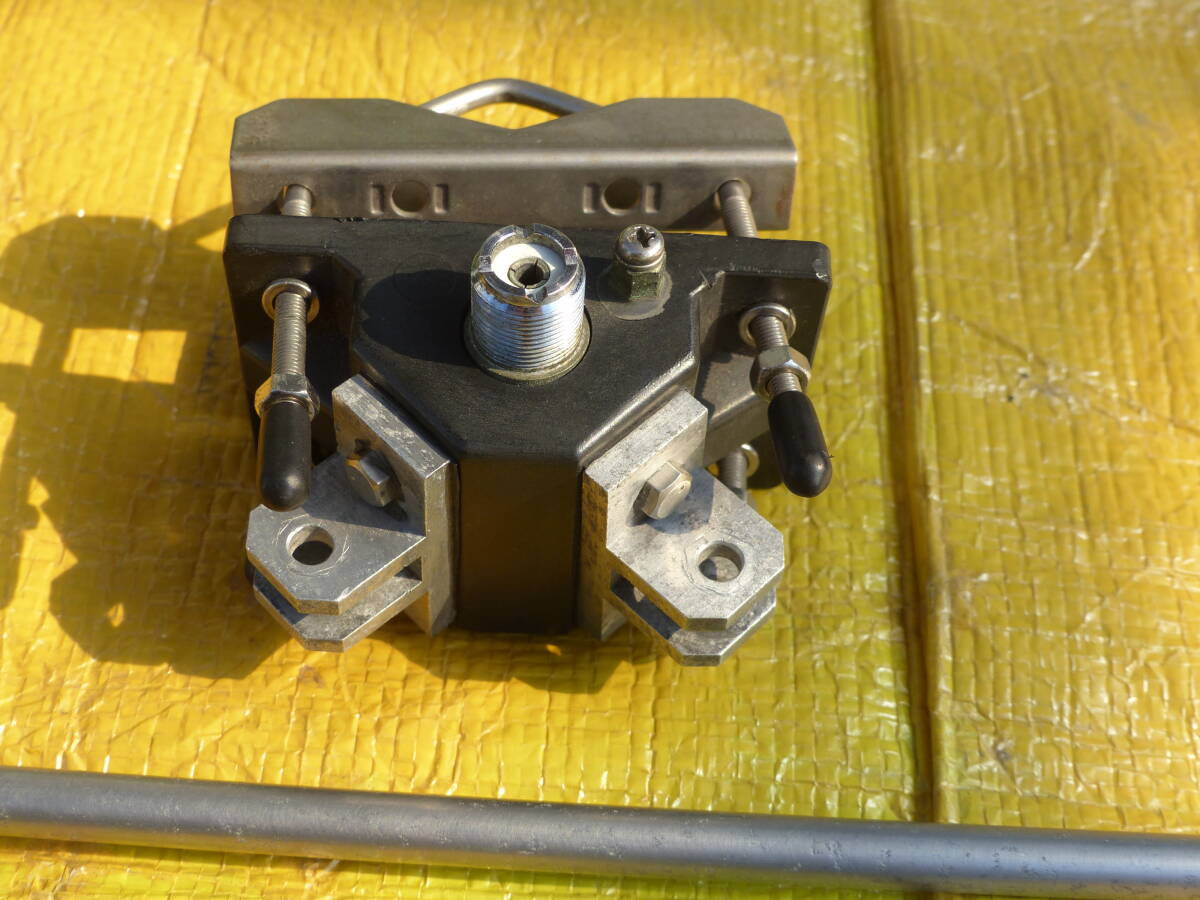

給電部

21MHz SWR 21.294で約1.0です。

インピーダンスは50Ω

7MHz帯 7.106付近で1.8 調整が必要

インピーダンスは50Ω

この梱包でお届けします。

  • Product Quantity
    : 1
  • Starting Bid
    :1,000円
  • Highest Bidder
    : 寄居ジャンボ / Rating:147
  • Listing Date
    :2025年10月17日 14時34分
  • Bidding closes on
    :2025年10月24日 21時03分
  • Auction Number
    :u1204318916
  • Condition
    :Junk (specify in description)
  • Automatic Extension
    :Yes
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Radio communications related products (import and export documents required) cannot be assisted in importing.
  2. It is possible that the product can only be picked up by yourself, and the self-pickup fee is quite high, please check the page to confirm
  3. The page has a fragile description, and fragile items cannot be shipped by sea. They can only be shipped by air. If the goods are not fragile, they can be shipped by air.

商品名

コメット COMET 7MHz帯、21MHz帯共用小型HFアンテナ CHA721 移動運用セット No.4

メーカー

コメット COMET

商品説明・状態


…【 特 長 】

①給電部には、フローティングバランを内蔵していますので、TVI対策に有効です。
 都市部のせまい場所からも安定してV・UHFなみにHFがおたのしみいただけます。、
 このフローティングバランは、開放型のためコネクターの芯線側とコネクターのアース側とは導通がありません。
 (テスターで計りますと∞を指します。)
②ローディングコイル及び放射素子が7MHz帯、21MHz帯とに各々独立しているため、各々単独でSWRの調整ができます。
③HF帯アンテナでありながら小型軽量であります。
 性能はフローティングバランを内蔵してマッチングがとりやすく、大型アンテナ並みの威力わ発揮します。
④アンテナの取付けは、水平方向にも垂直方向にも取付けができます。
 また、エレメントの角度が可変しますので場所を選びません。
 調整も非常に簡単ですので、ベランダ設置、ダイポール、野外、モービル等運用に多用途に使用可能であります。
⑤構造的にも強く給電部はガラス繊維樹脂を、金属は錆びないステンレス、アルミそれに真鍮にクロームメッキを使用し、
 ローディング部にはガラス繊維樹脂管を使用し、電気的にも安定した機能を発揮出来る様対策されています。

…【 定 格 】
形   式…グランドプレーン
周 波 数…7MHz、21MHz共用
V S W R…foにおいて1.2以下
インピーダンス…50Ω
耐 入 力…200W (SSB)
重 量…約2.2Kg
全   長…最大約 3m
取付ポール径 …25Φ~65Φ

…以上はメーカーサイトより…
…尚、誤字・脱字はご勘弁下さい。
…受信専用に使用して、その後保存していた中古品になります。
…汚れ細かい傷等あります。

その他の気づいた事柄……


※……ローディングコイルの直径が太いのでVA721の旧型のCHA721です。
※……年数が経っている為、経年劣化進んでいる可能性があります。
※……7MHzローディグコイル/長いエレメント用イモネジが固着して金具から外れません。
※……この様な中古品の出品物ですがご納得の上、欲しい方が居られましたら、入札、よろしくお願いします。
※……尚、以上説明は新品時の数値/事柄で、出品物が今後の継続的な動作を保証するものでは有りません。
※……良くお考えの上、ノークレーム、返品無しでお願いします。

個人的には……


※…最近、天袋から出てきました。
※飛びには、期待を持たないで下さい…飛びません。
※受信専用と割り切って使って下さい。
※組立には、六角レンジ及びスパナーが必要です。
※現状のままで、SWRとインピーダンスも測定しました。
※21MHz帯は21.294で約1.0、7MHz帯は7.106付近で約1.8、インピーダンスは共に50Ωです。
※使用される場合は取付けられた環境でエレメントの出し入れ調整が必要です。

※取扱説明書の必要な方はメーカーサイトからDLして下さい。

  https://www.comet-ant.co.jp/wp-content/uploads/2022/04/CHA-721.pdf

※……よろしくお願いします。

注意事項…

※現状でのお引渡しになります。
※現状での使用及び整備ができる方へと上記詳細をご理解いただいた方への出品になります。

お渡しするのは

・・・お渡しするのは…
 CHA721
★給電部     1
★エレメント(長)     2
★エレメント(短)     2
★取付金具        2
★角Uボルト        2
★塩ビキャップ     4

・・・の以上です。

発送方法

※兵庫県から本体代金と送料の入金確認後、ヤフネコパックの宅急便の元払いにて発送する予定です。
※料金は送付先のご住所が判明次第お知らせ致します。

※送料は落札後お知らせ致しますが…
※梱包寸法は高さ160mm×巾960mm×奥行160mm=合計 1280mm、梱包重量は3.2kgです。
兵庫県からの料金計算でほぼ分かると思います。
