絶版品★デュエット・キャミ・パッソ・bB【K3(K3-VE・K3-VE2・K3-VET )エンジン修理書】2003年4月


  • Product Quantity
    : 1
  • Starting Bid
    :25,500円
  • Highest Bidder
    : / Rating:
  • Listing Date
    :2025年08月12日 20時57分
  • Bidding closes on
    :2025年08月13日 20時57分
  • Auction Number
    :u400358820
  • Condition
    :New product
  • Automatic Extension
    :Yes
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
※この商品は絶版品になりました。
今後二度と手に入れることができませんので、この際いかがでしょうか。


***********************************************************************************

K3(K3-VE・K3-VE2・K3-VET )エンジン修理書 2003年4月。

ダイハツ製1.3L、水冷直列4気筒DOHC16バルブ。K3(K3-VE・K3-VE2・K3-VET )エンジン修理書です。
※ ダイハツからOEM供給を受けているトヨタが、ダイハツ製K3エンジン修理書を再編集したものです。

記載されている項目は

A.総説
 1 整備編の見方
  1-1 準備品
  1-2 本書に省略されている内容
  1-3 用語の定義

 2 単位

 3 一般規格ボルト、ナットの締め付けトルク
  3-1 識別

 4 使用記号略号の意味

 5 一般作業上の注意

B.エンジン本体
 1 準備品
  1-1 準備品一覧
  1-2 エンジンオーバーホール スタンドへの取り付け

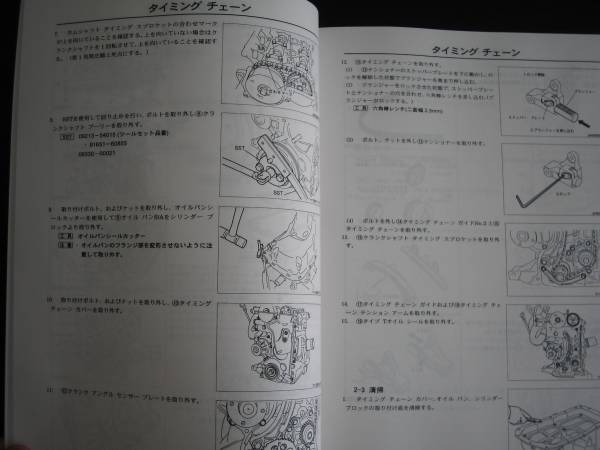

 2 タイミングチェーン
  2-1 構成品
  2-2 取り外し
  2-3 清掃
  2-4 点検
  2-5 取り付け

 3 カムシャフト
  3-1 構成図(タイミングチェーン取り外し、取り付け作業から連続 して次の作業を行う)
  3-2 取り外し
  3-3 清掃
  3-4 点検
  3-5 取り付け

 4 シリンダーヘッド
  4-1 構成図(カムシャフト取り外し、取り付け作業から連続して次 の作業を行う)
  4-2 取り外し
  4-3 清掃
  4-4 点検
  4-5 補給部品の組み付け
  4-6 取り付け

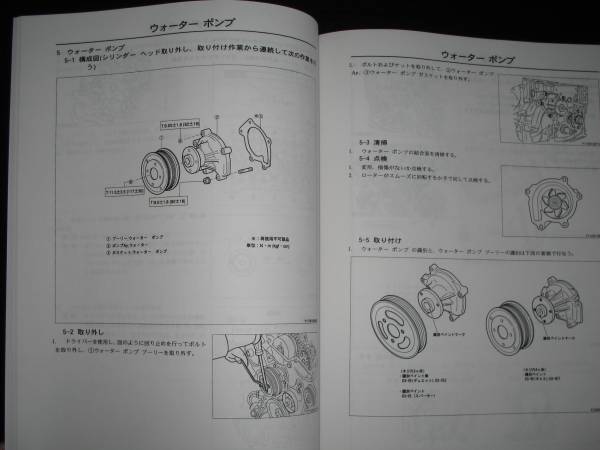

 5 ウォーターポンプ
  5-1 構成図(シリンダーヘッド取り外し、取り付け作業から連続し て次の作業を行う)
  5-2 取り外し
  5-3 清掃
  5-4 点検
  5-5 取り付け

 6 オイルポンプ
  6-1 構成図(タイミングチェーン取り外し、取り付け作業から連続 して次の作業を行う)
  6-2 取り外し
  6-3 清掃
  6-4 点検
  6-5 取り付け

 7 シリンダーブロック
  7-1 構成図(オイルポンプ取り外し、取り付け作業から連続して次 の作業を行う)
  7-2 シリンダーブロック分解
  7-3 清掃
  7-4 点検
  7-5 シリンダーブロック組み付け

C.エンジンエレクトリカル
 1 準備品
  1-1 準備品一覧

 2 始動装置
  2-1 始動回路
  2-2 スターター

 3 充電装置
  3-1 充電回路
  3-2 オルタネーター

D.巻末資料
 1 整備基準値


など、以上4項目から構成されています。

※色々な部分がわかりやすく説明されており、愛車のメンテナンス(オーバーホール)やチューニング など整備の方はもちろんのこと、趣味としてDIYをする方には是非とも必需品の本ではないでしょうか。
この修理書があるのとないのとでは作業の効率はもちろんのこと、 愛車を知る上において大変重要な位置を占めています。


※こちらは、2003年4月の生産車両に搭載のエンジンを対象に説明しています。


自宅での保管と違い、トヨタのメーカーでの保管でしたのでとても綺麗です。
長い間の保存や湿気などによる色あせなどは一切ありません。新 品・未使用ですので安心して購入いただけます。

※発送は、ゆうメールになります。
一切の手抜きなどはせず、汚れたり折れ曲がらないようにきちんと 梱包いたしますので安心していただいて大丈夫です。
